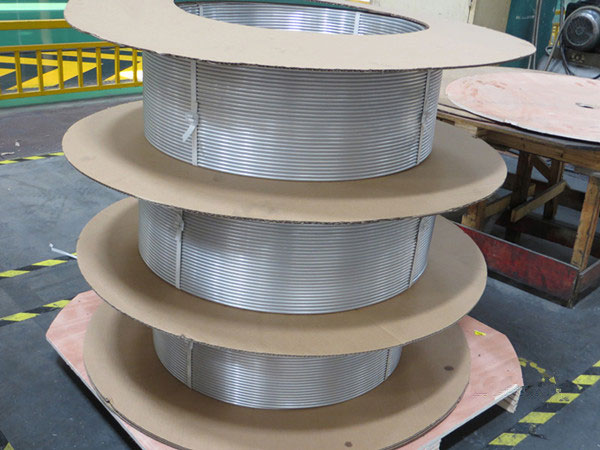

Aluminium and aluminium alloys are very suitable for extrusion and many types of tubes can be produced from easily extrudable aluminium and aluminium alloys
Extruded tube is a specific form of hollow extrusion, though not termed as a hollow “profile,” that is, long in comparison to its cross-sectional size.Continue extruded tube is symmetrical with uniform wall thickness and is either round, elliptical, square, rectangular, hexagonal, or octagonal. Square extruded tube, rectangular tube, hexagonal tube, and octagonal tube may have either sharp or rounded corners.
Chalco Aluminum Aluminium:1050,1060,1070,1070A,1100
Chalco Aluminum Aluminium alloy:3003
Temper:H112
1)Alloy ,temper and specification of Aluminium and aluminium alloys continue extruded tubes
1-1)Alloy,Temper
|
Alloy |
Temper |
|
1050,1060,1070,1070A,1100 |
H112 |
|
3003 |
H112 |
|
Remark: The other alloy ,temper can be produced according to your requirement |
1-2)Specification :(Unit:mm)
|
Nominal outside diameter |
Wall Thickness |
|
0.45 |
0.50 |
0.75 |
0.90 |
1.00 |
1.25 |
1.50 |
1.75 |
2.00 |
3.00 |
|
4.00 |
|
－ |
－ |
－ |
－ |
－ |
－ |
|
5.00 |
|
|
－ |
－ |
－ |
|
6.00 |
|
－ |
－ |
－ |
|
7.00 |
－ |
|
－ |
－ |
－ |
|
8.00 |
－ |
|
－ |
|
9.00 |
－ |
|
－ |
|
10.00 |
－ |
－ |
|
－ |
|
11.00 |
－ |
－ |
|
－ |
|
12.00 |
－ |
－ |
|
|
13.00 |
－ |
－ |
－ |
|
|
14.00 |
－ |
－ |
－ |
|
|
15.00 |
－ |
－ |
－ |
|
|
16.00 |
－ |
－ |
－ |
|
|
17.00 |
－ |
－ |
－ |
|
|
18.00 |
－ |
－ |
－ |
|
|
19.00 |
－ |
－ |
－ |
|
|
Remark:”Blank” stand for the supply range,or produce it according to customer’s requirements. |
2) The chemical component of Aluminium and aluminium alloys continue extruded tubes
|
Alloy |
Chemical component(%) |
|
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
|
Ti |
Zr |
Other |
Al |
|
Each |
Total |
|
|
1050 |
≤0.25 |
≤0.40 |
≤0.05 |
≤0.05 |
≤0.05 |
- |
≤0.05 |
V:0.05 |
≤0.03 |
－ |
≤0.03 |
- |
99.50 |
|
1060 |
≤0.25 |
≤0.35 |
≤0.05 |
≤0.03 |
≤0.03 |
- |
≤0.05 |
V:0.05 |
≤0.03 |
－ |
≤0.03 |
- |
99.60 |
|
1070 |
≤0.20 |
≤0.25 |
≤0.04 |
≤0.03 |
≤0.03 |
- |
≤0.04 |
V:0.05 |
≤0.03 |
－ |
≤0.03 |
- |
99.70 |
|
1070A |
≤0.20 |
≤0.25 |
≤0.03 |
≤0.03 |
≤0.03 |
- |
≤0.07 |
- |
≤0.03 |
- |
≤0.03 |
- |
99.70 |
|
1100 |
Si+Fe:0.95 |
0.05-0.20 |
≤0.05 |
- |
- |
≤0.10 |
- |
- |
- |
≤0.05 |
≤0.15 |
99.00 |
|
3003 |
≤0.6 |
≤0.7 |
0.05-0.20 |
1.0-1.5 |
- |
- |
≤0.10 |
- |
- |
- |
≤0.05 |
≤0.15 |
Remain |
3)Permissible variation in dimension of Aluminium and aluminium alloys continue extruded tubes
3-1)Deviation of circular tube outside diameter. (Unit:mm)
|
Nominal outside diameter |
Deviation of circular tube outside diameter. |
|
Any point of outside diameter and nominal outer diameter deviation |
Mean outside diameter and nominal outer diameter deviation |
|
Ordinary Level |
High precision level |
Ordinary Level |
High precision level |
|
4.00-5.00 |
+/-0.12mm |
+/-0.10mm |
+/-0.08mm |
+/-0.06mm |
|
＞5.00-8.00 |
+/-0.14mm |
+/-0.12mm |
+/-0.10mm |
+/-0.08mm |
|
＞8.00-10.00 |
+/-0.16mm |
+/-0.14mm |
+/-0.12mm |
+/-0.10mm |
|
＞10.00-18.00 |
+/-0.18mm |
+/-0.16mm |
+/-0.14mm |
+/-0.12mm |
|
＞18.00-30.00 |
+/-0.20mm |
+/-0.18mm |
+/-0.16mm |
+/-0.14mm |
Remark 1:Mean outside diameter is the average value of any two outer diameters at right angles is measured on the pipe cross section.
Remark 2:This table not apply for the Inside Diameter of Coil of Aluminum coiled tube＜(40 x Nominal outside diameter) |
3-2)The deviation of circular tube wall thickness
|
Nominal Wall Thickness |
The deviation of wall thickness |
|
Ordinary Level |
High precision level |
|
0.35-0.50 |
+/-0.08mm |
+/-0.06mm |
|
＞0.50-0.75 |
+/-0.10mm |
+/-0.08mm |
|
＞0.75-1.00 |
+/-0.12mm |
+/-0.10mm |
|
＞1.00-1.50 |
+/-0.14mm |
+/-0.12mm |
|
＞1.50-2.00 |
+/-0.16mm |
+/-0.13mm |
4)Mechanical Property of Aluminium and aluminium alloys continue extruded tubes
|
Alloy |
Mechanical Property |
Vickers hardness/
HV |
Tensile Strength
(MPa) |
Elongation
A50/% |
|
Not less than |
|
1070A 1070 1060 1050 |
60 |
27 |
20 |
|
1100 |
75 |
28 |
25 |
|
3003 |
95 |
25 |
30 |
