Aluminum Square And Rectangle Pipe

2018-06-01 15:57
Henan Chalco Aluminum Square And Rectangle Pipe produces are widely used in aviation, construction, automotive--these three major areas, high precision, small coarse crystal, uniform oxidation, good straightness, high turning performance, small grain size and moderate price, short delivery, all these prove us as the top of the world.

1. Accuracy:+/-0.02mm
 Purpose: to guarantee the automatic processing of high precision machining parts.

2. Straightness <0.3m/2.5m

Purpose: Guarantee the speed requirements>8000 rpm, no material jittery.

3. Coarse crystal ring<0.5mm

Purpose: To reduce the amount of turning by the customer, improve efficiency and reduce costs.

4. Grain control

Purpose: to ensure that the 2、5、6、7 series aluminum alloy in the hard anodizing, anodizing uniform, color bright and beautiful.

5. Turning performance improvement

To improve the processing of uniform chip, improve the processing of yards yield.

Applications:Mold manufacturing Aircraft structural parts with plate Free Forging and Die Forging car parts Sports Equipment, high resistance structural parts for mechanical industry, aviation, defense, motorbike and automotive.

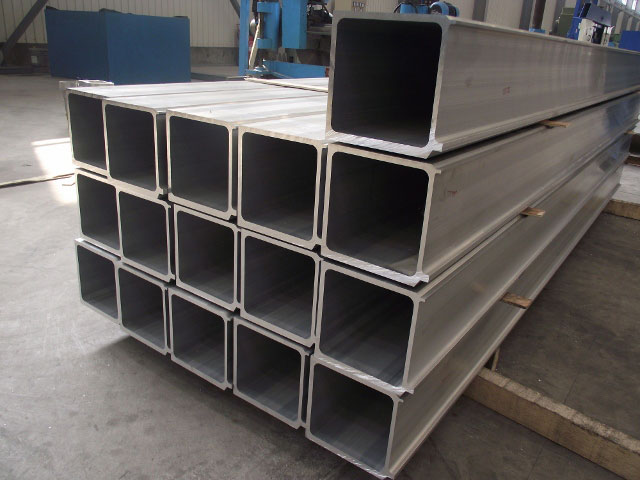

aluminum square pipe


Square Pipe Series(Square And Rectangle)


Mould No. A(mm) B(mm) Wall Thickness(mm) Line Density(Kg/m) Extrusion Capacity R Angle
CHALCO_A000483 15 15 2 0.281 500
CHALCO_A000804 15 15 1 0.151 500
CHALCO_D009661 15.875 15.875 1.14 0.179 500 Have
XSS-414 12 18 1.0 0.149 500T Have Angle R,But wall thickness minus tolerance
JT-508500 18 18 2.0 0.346 660T
XSS-414 12 18 1 0.149 500T R1.0
ALS_D000029 19 19 1.2 0.229 500 Have
TF-01 19 19 1.00/
TF-162 19 19 1.2 0.229
CHALCOGYC-912 19 19 3.5 0.586  880T
ALD_D001817 19.05 19.05 1.83 0.34 660T Have
LZP_D000001 19.05 19.05 2.41 0.417 660T R2.79
CHALCO_D000561 19.05 19.05 1.65 0.311
CHALCO_D000848 19.05 19.05 3.18 0.543
CHALCO_D001786 19.05 19.05 2.41 0.416
CHALCO_D004780 19.05 19.05 1.40 0.258
CHALCO_D005057 19.05 19.05 1.27 0.244 500
CHALCO_D005804 19.05 19.05 1.59 0.299 660T
CHALCO_DOO0561 19.05 19.05 1.65 0.311
CHALCO_DOO0848 19.05 19.05 3.18 0.543
CHALCO_DOO5057 19.05 19.05 1.27 0.244
CHALCO_A000861 19.05 19.05 1.63 0.306 660T
CHALCOGYC-1806 19.1 19.1 1.7 0.299  500T  Have
SYLM-23 19.6 19.6 2 0.38  660T
CCNZ-73 8 20 2.0 0.259 500
CHALCO_A000395 10 20 2.0 0.281
CHALCO_A000539 10 20 1.5 0.219 500
CHALCO_AOOO395 10 20 2 0.281 500
CHALCO_AOOO539 10 20 1.5 0.219
CHALCO_A000537 15 20 2 0.335 500
CHALCO_AOOO537 15 20 2.0 0.335
TF-175 15 20 1.2 0.211
CHALCOGYC-1616 15 20 2 0.335 660T
TF-154 18 20 1.5 0.284
ALD_D000566 20 20 3 0.551  880T
ALD_D000567 20 20 3 0.551  880T  Have
CHALCO_A000280 20.00 20.00 2.00 0.389 660T
CHALCO_A000394 20 20 1.50/ 0.3
CHALCO_AOOO394 20 20 1.5 0.3 500
TF-40 20 20 0.90/1.00/1.50
TF-52 20 20 0.90/1.40/1.50
CHALCOGYC-1819 20 20 2.5 0.473 660T R2.0
TF-50 14 21 1.00/
HR60G-6F  20 21 1.3 0.269 500 Have
TF-193 8 22 1.2 0.179 500
TF-188 4.5 25 1 0.149 500
CHALCO_A000603 15 25 2 0.389 660T
CHALCO_A000743 15.00 25.00 1.80 0.345 660T Have
CHALCO_A001097 15 25 1.5 0.3 500
JNAT-29 20 25 1.5 0.34 660T
CHALCO_A000666 20 25 2.0 0.443 660T
ALD_D000400 25 25 3 0.692  880T  Have
ALD_D000568 25 25 1.6 0.404 660T
ALD_D000569 25 25 3 0.713  880T  Have
ALD_D002612 25 25 2 0.491 660T Have
CHD_A000013 25 25 2 0.497 660T
CHALCO_A000281 25 25 2 0.497 660T
CHALCO_A000355 25 25 3.00/ 0.713
CHALCO_A000984 25 25 1.5 0.381 660T
CHALCO_A001867 25 25 1.5 0.372 660T Have
CHALCO_AOOO355 25 25 3 0.713 660T
TF-153 25 25 0.8 0.209
TF-163 25 25 1.2 0.307
TF-58 25 25 1.50/
XSS-413 25 25 1.1 0.282 500T Have Angle R,But wall thickness minus tolerance
JT-508499 18 25 2 0.421 660T
XSS-413 25 25 1.1 0.282 500T R1.0
CHALCO_D006807 12.7 25.4 3.175 0.544 660T
CHALCO_D007554 12.70 25.40 3.05 0.527 660T
ALD_D000528 25.4 25.4 1.22 0.319 660T
CHALCO_D000047 25.4 25.4 3.05 0.734
CHALCO_D000234 25.4 25.4 1.65 0.424
CHALCO_D000235 25.4 25.4 3.18 0.76
CHALCO_D000835 25.40 25.40 3.18 0.728
CHALCO_D000847 25.4 25.4 1.57 0.405 660T
CHALCO_D001027 25.40 25.40 1.57 0.406
CHALCO_D001028 25.40 25.40 3.18 0.760
CHALCO_D002105 25.4 25.4 1.6 0.401 660T Have
CHALCO_D002819 25.4 25.4 1.4 0.354 660T Have
CHALCO_D004046 25.4 25.4 1.91 0.457 660T Have
CHALCO_D004198 25.4 25.4 1.27 0.32 660T Have
CHALCO_D004686 25.4 25.4 1.14 0.292 660T Have
CHALCO_D004978 25.4 25.4 1.02 0.268 500 Have
CHALCO_D007220 25.4 25.4 1.57 0.391 660T Have
CHALCO_D009300 25.4 25.4 1.24 0.325 660T
CHALCO_DOO0047 25.4 25.4 3.05 0.734
CHALCO_DOO0234 25.4 25.4 1.65 0.424
CHALCO_DOO0235 25.4 25.4 3.18 0.76
CHALCO_DOO0847 25.4 25.4 1.57 0.406
CHALCO_A000696 25.40 25.40 3.25 0.778  880T  6082-T6
CHALCO_A000860 25.4 25.4 1.63 0.417 660T
TF-02 25.4 25.4 0.80/0.90/1.0/1.05/ 1.10/1.20
CHALCO_D040134 25.40 25.40 1.00 0.264 500T
TF-74 16 26 1.10/
XSS-415 18 28 1.1 0.258 500T Have Angle R,But wall thickness minus tolerance
XSS-415 18 28 1.1 0.258 500T R1.0
CHALCO_D002024 28.58 28.58 1.88 0.524 660T Have
TF-177 8 30 0.6/1.2 0.119
CHALCO_A000988 10 30 1.5 0.3 660T
CCNZ-66 10.2 30 2 0.391 660T
CHALCO_A000290 15.00 30.00 2.00 0.443 660T
CHALCO_A001069 15 30 1.5 0.34 660T
CHALCO_AOOO290 15 30 2.0 0.443
TF-126 19.6 30 1.10/
CHALCO_A000270 20 30 2 0.497 660T
CHALCO_A000536 20 30 3 0.713 660T
CHALCO_A000675 20 30 1.5 0.381 660T
CHALCO_AOOO270 20 30 2.0 0.497
CHALCO_AOOO536 20 30 3.0 0.713
TF-41 20 30 1.00/1.40/1.50
XSS-411 20 30 1.2 0.307 660T Have Angle R,But wall thickness minus tolerance
XSS-412 20 30 1.1 0.282 500T Have Angle R,But wall thickness minus tolerance
CHALCO_A000593 25 30 2 0.551 660T
CHALCO_A000108 30 30 2 0.605  880T
CHALCO_A000282 30 30 1.5 0.462 660T
CHALCO_A000350 30 30 3.00/ 0.875
CHALCO_A000533 30 30 2 0.596  880T  Have
CHALCO_A000551 30 30 2 0.584  880T  Have
CHALCO_AOOO350 30 30 3 0.875  880T
TF-110 30 30 2.00/
CHD_A000225 30.00 30.00 1.50 0.460 660T Have
ALD_D004022 30 30 2 0.591 660T Have
XSS-410 30 30 1.2 0.372 660T Have Angle R,But wall thickness minus tolerance
CHD_A000267 30 30 4 1.123 1250
JT-504160 18 30 3 0.68 880T
YDKM-KL-41 24 30 2 0.54 660T
TF-215  23 30 2 0.529 660T
XSS-410 30 30 1.2 0.372 660T R1.0
XSS-411 20 30 1.2 0.307 660T R1.0
XSS-412 20 30 1.1 0.282 500T R1.0
QL-877 18 30 1.5 0.365 660T
CHALCO_D000048 31.75 31.75 3.05 0.943
CHALCO_D000236 31.75 31.75 3.18 0.978
CHALCO_D004463 31.75 31.75 4.76 1.388 1250T Have
CHALCO_DOO0048 31.75 31.75 3.05 0.943
CHALCO_DOO0236 31.75 31.75 3.18 0.978
CHALCO_A000840 31.75 31.75 3.25 1.001  880T
GRMQ-7026 20 32 1.2 0.321 660T
TF-48 25 32 2.00/3.00
CHALCOGYC-794 25 32 2 0.572  880T
ALD_D000398 32 32 3 0.94  880T
ALD_D000529 32 32 2 0.648 660T
ALD_D000570 32 32 3 0.94 1250T
TF-194 32 32 5 1.458 1250T
CHALCOGYC-795 32 32 1.5 0.494 660T
TF-100 25 33 1.20/1.40
CHALCO_A000756 20 34 3 0.778  880T
YDKM-SM-64 31 34 3 0.956 880
CHALCO_A000530 34 34 3 1.004  880T
CHALCO_A000739 34 34 2 0.691  880T
CHD_A000224 25 35 1.5 0.462 660T
TF-189 5 35 1.2 0.244 500
CHALCO_A000822 25 35 2 0.605  880T
CHALCO_A000459 35.00 35.00 2.00 0.713  880T
CHALCO_A000607 35 35 3 1.037 1250T
ALD_D001105 21.6 35.4 2 0.572 660T Have
CHALCOGYC-609 35.5 35.5 2 0.696  880T
LYL-117 15 37 2 0.5 660T R3.0
CCNZ-55 35 37 4.0 1.382 1250 Have
SYLM-22 19.6 37.6 2 0.575 600T
ALD_D000586 25 38 1.5 0.47  880T  Have
ALD_D000615 25 38 1.5 0.47 660T Have
ALD_D002611 25.00 38.00 1.50 0.470 660T Have
ALD_D003696 25 38 2 0.637 880T
D-AE0127X 25 38 1.2 0.393 660T
TF-165 25 38 1.6 0.51
ALD_D003981 25.00 38.00 1.45 0.455 660 OutsideR3.0
ALS_D000027 38 38 1.6 0.629  880T
ALS_D000028 38 38 2 0.778  880T
D-AE0106X 38 38 1.2 0.477 660T
TF-164 38 38 1.6 0.627
ALD_D004077 25 38 2.5 0.763 880T Inside R0.5,Outside R3
CHALCOGYC-2063 25 38 3.0 0.875 880T Inside R2,Outside R3
ALD_D001141 17.45 38.1 3.18 0.845  880T
CHALCO_D007152 17.53 38.1 1.14 0.319 660T Have
CHALCO_D004778 19.05 38.1 1.02 0.288 660T Have
CHALCO_D004781 19.05 38.1 3.18 0.847
TF-169 19.1 38.1 1 0.298
CHALCO_D000831 25.4 38.1 3.18 0.978
CHALCO_D002818 25.4 38.1 1.4 0.437
CHALCO_D002820 25.4 38.1 1.02 0.321 660T Have
CHALCO_D004035 25.4 38.1 1.02 0.322 660T Have
CHALCO_D004328 25.4 38.1 1.02 0.337 660T
CHALCO_D004980 25.4 38.1 1.09 0.362 660T Have
CHALCO_D006311 25.40 38.10 1.02 0.337 660T Have
TF-03 25.4 38.1 0.90/1.0/1.02/1.15/ 1.20/2.50
CHALCO_D007068 25.40 38.10 1.57 0.507 660T Have
CHALCO_D000028 38.10 38.10 1.60 0.612
CHALCO_D000049 38.1 38.1 3.05 1.152
CHALCO_D000113 38.1 38.1 1.27 0.505
CHALCO_D000237 38.1 38.1 3.17 1.197 1250T
CHALCO_D000834 38.10 38.10 3.56 1.326
CHALCO_D001235 38.1 38.1 1.57 0.621  880T  Have
CHALCO_D001327 38.1 38.1 1.65 0.65
CHALCO_D002821 38.1 38.1 3.18 1.18 1250T Have
CHALCO_D004199 38.1 38.1 1.14 0.443 660T Have
CHALCO_D004329 38.1 38.1 1.02 0.407 660T
CHALCO_D004688 38.10 38.10 1.40 0.546
CHALCO_D004689 38.1 38.1 1.14 0.462 660T Have
CHALCO_D004974 38.1 38.1 1.14 0.456 660T Have
CHALCO_D005267 38.1 38.1 3.18 1.201 1250T Have
CHALCO_D006306 38.10 38.10 1.02 0.407 660T Have
CHALCO_D007070 38.1 38.1 2.29 0.86  880T  Have
CHALCO_D009510 38.1 38.1 4.78 1.719 1250T Have
CHALCO_DOO0049 38.1 38.1 3.05 1.152
CHALCO_DOO0237 38.1 38.1 3.18 1.196
CHALCO_DOO1327 38.1 38.1 1.65 0.65
CHALCO_DOO4329 38.1 38.1 1.02 0.408
CHALCO_A000697 38.1 38.1 3.25 1.198 1250T
YDKM-SY-38 14.5 38.5 2 0.529 660T
CCNZ-67 10.2 40 2 0.499 660T
CHALCO_A000892 12 40 2 1.685 1800
CHALCOGYC-1312 14 40 1.6 0.439 660
CHALCO_A000720 15 40 2 0.551 660T
CHALCO_A000104 20 40 2 0.605 660T
CHALCO_A000364 20 40 3.0 0.875
CHALCO_A000508 20 40 2.5 0.742  880T
CHALCO_A000891 20 40 4 1.123 1250T
CHALCO_A00891 20 40 4 1.123
CHALCO_AOOO104 20 40 2.0 0.605
CHALCO_AOOO361 20.00 40.00 2.00 0.596  880T  Have
CHALCO_AOOO364 20 40 3 0.875  880T
CHALCO_AOOO508 20 40 2.5 0.742
TF-75 20 40 0.80/
YDKM-TF-02 23 40 2 0.637  880T
LNJH-10 24 40 2.5 0.785 880T Have
CHALCO_A000645 25 40 2 0.659  880T
CHALCOGYC-1131E 25 40 3 0.956 880
CHALCOGYC-1192 25 40 4.0 1.231 1250
DC00001183G00 30 40 2 0.713 1250T
LXC-00-712 30 40 3 1.035 880 Have
CHALCO_A000271 30 40 3 1.037  880T
CHALCO_A000365 30 40 2.0 0.713
CHALCO_A000420 30 40 4 1.399 1250T
CHALCO_A000847 30 40 2.5 0.878  880T
CHALCO_AOOO271 30 40 3.0 1.037
CHALCO_AOOO365 30 40 2 0.713  880T
CHALCO_AOOO420 30 40 4.0 1.339
ALD_D000571 40 40 3 1.179 1250T Have
ALD_D000616 40 40 3 1.199 1250T
ALD_D001136 40 40 1.6 0.664  880T
LXC-00-711 40 40 3.0 1.197 1250
CHALCO_A000261 40 40 3 1.199 1250T
CHALCO_A000283 40 40 2 0.821  880T
CHALCO_A000284 40 40 4 1.555 1250T
CHALCO_A000351 40 40 2.50/ 1.013


Square Pipe Series2(Square And Rectangle)

Mould No. A(mm) B(mm) Wall Thickness
(mm)
Line Density
(Kg/m)
Extrusion
Capacity
R Angle
CHALCO_A000534 40.00 40.00 2.50 1.003  880T  Have
CHALCO_A000552 40.00 40.00 2.00 0.800  880T  Have
CHALCO_AOOO351 40 40 2.5 1.013  880T
CHALCO_AOOO357 40 40 2.5 1.003  880T  Have
TF-176 40 40 2 0.793   R
TF-176 40 40 1.4 0.584  880T
TF-187 40 40 1.2 0.503 660T
CHALCOGYC-1774 12 40 1.5 0.381 660T R3.0
QL-858 20 40 1.5 0.462 660T
QL-878 15 40 1.5 0.421 660T
CHALCOGYC-1011 11 42 1.2 0.328 660 Have
TF-16 25 42.6 1.00/1.20
CCNZ-41 25 43 2 0.692 880 Have
CCNZ-49 40 43 2 0.853 880
LYL-116 20 44 2 0.611 880T R5.0
LNJH-08 40 44 2 0.868 880T Have
CHALCOGYC-915 44 44 3 1.328 1250T
FG-01 38.1 44.45 3.18 1.306  880T  Have
CHALCO_D001237 38.1 44.45 1.78 0.757
CHALCO_D000050 44.45 44.45 3.05 1.362
CHALCO_D002020 44.45 44.45 3.18 1.417 1250T
CHALCO_DOO0050 44.45 44.45 3.05 1.362
CHALCO_DOO2020 44.45 44.45 3.18 1.416
CHALCO_A001119 20 45 2.0 0.659  880T
CHALCO_A000584 25 45 2 0.713
CHALCO_AOOO584 25 45 2 0.713  880T
TF-129 25 45 0.80/1.17
CHALCO_A000985 33 45 2.5 0.949 880T
CHALCO_A000360 45 45 2.00/ 0.929
CHALCO_AOOO360 45 45 2 0.929  880T
CHALCOGYC-1300 16 46 2.5 0.749 880 Have
TF-185 20 46 2.5 0.824  880T
CHALCOGYC-863 20 46 3 0.972  880T
DLQT-10 48 48 1.3 0.656  880T
LNJH-02 40 49 2 0.922 880T Have
CHALCOGYC-1617 20 50 2 0.713 880T
TF-197 8 50 2 0.581  880T  Have
ALS_D000385 10 50 1.15 0.353 660T R1.5
TF-104 10 50 1.00/
CHALCO_A000667 15 50 2 0.659  880T
CHALCO_A000272 20.00 50.00 2.00 0.713 880T
CHALCO_A000641 20 50 3 1.037  880T
CHALCO_A000843 20 50 3.0 0.543 660T
CHALCO_AOOO272 20 50 2.0 0.713
TF-186 20 50 1.2 0.428 660T Have
XSS-409 20 50 1 0.36 660T Have Angle R,
But wall thickness
minus tolerance
ALD_D000409 25 50 1.6 0.615  880T  Have
ALD_D000572 25 50 3 1.097 1250T Have
CHALCO_A000273 25 50 2 0.767  880T
CHALCO_A000541 25 50 3 1.118 1250T
CHALCO_AOOO273 25 50 2.0 0.767
CHALCO_AOOO541 25 50 3.0 1.118
TF-123 25 50 2.00/
TF-96 25 50 1.20/
LXC-00-704 30 50 3.0 1.197 1250 Have
CHALCO_A000274 30 50 3 1.199 1250T
CHALCO_A000368 30 50 2.0 0.821
CHALCO_A000878 30 50 2.5 1.013  880T
CHALCO_A000965 30 50 3 1.178 1250T Have
CHALCO_AOOO274 30 50 3.0 1.199
CHALCO_AOOO368 30.00 50.00 2.00 0.821  880T
TF-127 30 50 1.90/1.4
CHALCOXC-61 32 50 4 1.598 1250T
CHALCO_A001223 34 50 3 1.264 1250T
CHALCO_A000916 35 50 2.4 1.002  880T  Have
CHALCO_A000986 38 50 5 2.069 1250T Have
TF-56 38 50 1.10/1.40
ALD_D000423 40 50 3 1.34 1250T Have
LXC-00-703 40 50 3.0 1.359 1250 Have
CHALCO_A000369 40 50 3.0 1.361
CHALCO_A000369 40 50 3 1.361 1250T
CHALCO_A000370 40 50 4 1.771 1250T
CHALCO_A000544 40 50 2 0.929  880T
CHALCO_A001122 40 50 2.5 1.148 1250T
CHALCO_AOOO369 40 50 3.0 1.361
CHALCO_AOOO370 40 50 4.0 1.771
CHALCO_AOOO544 40 50 2.0 0.929
CHALCO_A000450 45 50 3 1.442 1250T
CHALCO_AOOO450 45 50 3.0 1.442
8M9T-XC-XJ-007 50 50 5 2.393 2000T Have
ALD_D000399 50 50 2.5 1.283 1250T
ALD_D000411 50 50 1.6 0.794  880T  Have
ALD_D000412 50 50 2 0.99 1250T Have
ALD_D003988 50 50 2 1.018 1250 OutsideR3
insideR1.0
ALD_D000612 50 50 1.8 0.89  880T  Have
ALD_D000820 50 50 1.9 0.938  880T  Have
LXC-00-707 50 50 3.0 1.523 1250 Have
LXC-00-709 50 50 3.0 1.521 1250 Have
CHALCO_A000051 50 50 3 1.523 1250T
CHALCO_A000352 50 50 4.00/ 1.987
CHALCO_A000358 50 50 2.00/ 1.037
CHALCO_A001049 50 50 3.2 1.617 1250T
CHALCO_AOOO352 50 50 4 1.987 1250T
CHALCO_AOOO358 50 50 2 1.037  880T
STX1093-501 50.00 50.00 5.00 2.430 2000T Have
TF-167 50 50 1 0.529
TF-39 50 50 1.20/1.25/1.30/1.40/1.45
/1.50/2.00/2.55/3.00

ALD_D003985 50 50 3 1.502 1250 OutsideR3.0
insideR0
CHALCOGYC-1881 50 50 3.5 1.757 1250T R0.5
CHALCOGYC-1882 50 50 5 2.429  2000T  R0.5
XSS-409 20 50 1.0 0.36 660T R2.0
CHD_A000295 50 50 5 2.43 1800T
CHALCO_D040126 25.40 50.80 1.00 0.401 660T
CHALCO_D040141 12.7 50.8 1.5 0.49 660T Have
CHALCO_D000434 25.4 50.8 3.18 1.197 1250T
CHALCO_D002102 25.4 50.8 2.29 0.868  880T  Have
CHALCO_D002106 25.4 50.8 1.45 0.573  880T  Have
CHALCO_D004391 25.4 50.8 3.3 1.192  880T  Have
CHALCO_D004775 25.4 50.8 1.4 0.546
CHALCO_D004976 25.4 50.8 3.05 1.154 1250T Have
CHALCO_A000698 25.4 50.8 3.25 1.224 1250T
TF-04 25.4 50.8 0.90/1.00/1.10
/1.20/1.30/1.40

CHALCO_D001532 38.1 50.8 3.18 1.413
CHALCO_D020031 38.1 50.8 3.3 1.467 1250
ALD_D000413 50.8 50.8 3.18 1.589 1250T Have
ALD_D000514 50.8 50.8 1.85 0.932 1250T Have
ALD_D000573 50.8 50.8 2 1.008 1250T Have
ALD_D000574 50.8 50.8 3.2 1.598 1250T Have
ALD_D001137  50.8 50.8 1.8 0.908  880T  Have
CHALCO_D000051 50.8 50.8 3.05 1.57
CHALCO_D000238 50.8 50.8 3.18 1.631
CHALCO_D000239 50.8 50.8 4.78 2.374
CHALCO_D000240 50.8 50.8 6.35 3.047 2000T
CHALCO_D000692 50.80 50.80 3.18 1.609
CHALCO_D000697 50.80 50.80 2.54 1.312
CHALCO_D000823 50.8 50.8 6.35 3.047 1250T Have
CHALCO_D003105 50.8 50.8 4.78 2.374 1250T Have
CHALCO_D008682 50.8 50.8 4.29 1.998 1250T Have
CHALCO_DOOO238 50.8 50.8 3.18 1.631
CHALCO_DOOO239 50.8 50.8 4.78 2.374
CHALCO_DOOO240 50.8 50.8 6.35 3.047 2000T
CHALCO_DOOO968 50.8 50.8 6.1 2.943 2000T
CHALCO_DOOOO51 50.8 50.8 3.05 1.57
CHALCO_A000699 50.8 50.8 3.25 1.67 1250T
CHALCO_A000908 50.8 50.8 1.63 0.863  880T
TF-105 35 55 2.00/
CHALCOGYC-1131B 40.00 55.00 3.0 1.442 1250
CHALCO_A000460 55 55 2 1.145 1250T
TF-103 39 59 1.40/
CCNZ-68 10.2 60 2 0.715 880T
CHALCO_A000371 20.00 60.00 2.00 0.821  880T
TF-161 20 60 1.2 0.503
CCNZ-64 20.2 60 2 0.823 880
CHALCO_A000366 25 60 2.0 0.875
CHALCO_A000834 25 60 3 1.28 1250T
CHALCO_AOOO366 25 60 2.0 0.875
CHALCO_A000372 30 60 3 1.361 1250T
CHALCO_A000543 30.00 60.00 2.00 0.929  880T
CHALCO_AOOO372 30 60 3.0 1.361
CHALCO_AOOO543 30 60 2.0 0.929
TF-95 30 60 1.20/
CHALCO_A000105 40 60 2.5 1.283 1250T
CHALCO_A000275 40 60 4 1.987 1250T
CHALCO_A000373 40 60 3 1.523 1250T
CHALCO_A000384 40.00 60.00 2.00 1.037  880T
CHALCO_A000535 40 60 2.5 1.273 1250T Have
CHALCO_A000806 40 60 2.0 1.028  880T  Have
CHALCO_AOOO105 40 60 2.5 1.283
CHALCO_AOOO275 40 60 4.0 1.987
CHALCO_AOOO373 40 60 3.0 1.523
CHALCO_AOOO384 40 60 2.0 1.037
SWTJ-008 40 60 3 1.523 1250T
TF-73 40 60 1.40/
ALD_D003987 40.00 60.00 2.00 1.018 1250 OutsideR3.0
insideR1.0
LXC-00-701 50 60 3.0 1.683 1250 Have
CHALCO_A000721 50 60 3 1.685 1250T
CHALCO_A000922 50 60 4 2.203 1250T
STX1093-603 50 60 5 2.691 2750T Have
CHALCO_A000109 60 60 4 2.419 1800
CHALCO_A000353 60 60 3.00/ 1.847
CHALCO_A000531 60 60 2 1.253 1250T
CHALCO_A001103 60 60 2 1.253 1250T
CHALCO_AOOO353 60 60 3 1.847 1800
TF-72 60 60 1.40/2.50
TF-94 60 60 1.20/
TF-216 40 60 2.0 0.993 1250
JT-518525 18 60 2.5 0.986 880T
TF-88 40.4 60.6 2.70/
CHALCOGYC-836 40 61.2 3 1.542 1250T
CHALCO_D004687 25.4 63.5 1.4 0.641
CHALCO_D000114 38.1 63.5 1.57 0.836
CHALCO_D000115 38.1 63.5 1.47 0.784
CHALCO_D004327 38.1 63.5 1.52 0.811
CHALCO_D004690 38.1 63.5 1.52 0.802
CHALCO_D004977 38.1 63.5 3.05 1.572 1250T
CHALCO_D005614 38.1 63.5 3.175 1.633 1250T
CHALCO_D000241 63.5 63.5 6.35 3.918 2000T
CHALCO_D004584 63.5 63.5 6.1 3.779 2000T
CHALCO_D009479 63.5 63.5 3.17 2.069 1800T
CHALCO_DOO0241 63.5 63.5 6.35 3.918 2000T
CHALCO_DOO4584 63.5 63.5 6.1 3.778 2000T
TF-37 25 64 0.80/0.90/1.00/1.10
/1.20/1.30

TF-59 44 64 1.00/1.10/1.20
ALD_D000534 16 65 1.40 0.576  880T  Have
ALS_D000386 16 65 1.15 0.473 880T R3.0
TF-45 65 65 1.40/
KLYL-W204-43826 29.4 65.4 4.5 2.066 1800 Have
TF-13 25.4 67 0.85/0.90/1.00/1.10
/1.15/1.20
/1.25/1.30/1.40/1.50

TF-182 44.5 67 2.5 1.428 1250T Have
TF-23 44.5 67 1.00/1.20/1.50/2.00
TF-24 67 67 1.10/1.20/1.50
TF-102 43 69 1.40/
CHALCO_D010667 35 70 2 1.082 1250T R2.0
CHALCO_A000606 20 70 2 0.929 1250T
BJKJY-HL05 30 70 1.2 0.632 880T
CHALCO_A001118 30 70 3 1.523 1250T
CHALCO_A000262 40 70 3 1.685 1250T
CHALCO_AOOO262 40 70 3.0 1.685
TF-202 50 70 1.5 0.948 1250
TF-69 50 70 3.00/
TF-214 50 70 2.5 1.509 1250T Have
CHALCO_A000448 70 70 4 2.851 1800
CHALCO_A000719 70 70 2 1.469 1250T
CHALCOGYC-1883 70 70 8 5.356 3150T R0.5
TP-1278B 25 70.5 1.2 0.603 880T
TF-28 25 73 1.20/1.40/1.60
TF-26 25.4 73 1.00/1.15/1.20/1.30
/1.35/1.40

TF-160 22 75 1.2 0.613
ALD_D003941 25 75 2 1.037 880 Have
TF-124 50 75 2.00/
TF-86 20 76 0.80/0.85
TF-27 25 76 0.90/1.00/1.20/2.0
ALD_D002752 76 76 6.2 4.303 2000T Have
TF-19 76 76 1.20/1.50
CHALCO_D001530 25.4 76.2 3.18 1.631
CHALCO_D004774 25.4 76.2 1.4 0.734
CHALCO_D006186 25.4 76.2 3.18 1.61 1250T Have
CHALCO_D006992 25.4 76.2 3.175 1.633 1250T Have
CHALCO_D010461 25.4 76.2 2.6 1.352 1250T Have
CHALCO_A001458 25.4 76.2 3.25 1.67 1250T
TF-05 25.4 76.2 0.80/0.90/0.98/1.00/1.10
/1.20/1.40/1.50/3.00

TF-06 25.4 76.2 1.4/
CHALCO_D002318 38.1 76.2 3.18 1.851 1250T
CHALCO_D002340 38.1 76.2 3.05 1.781 1250T Have
CHALCO_D004691 38.1 76.2 1.57 0.94 1250T Have
CHALCO_D004975 38.1 76.2 1.57 0.945 1250T Have
CHALCO_D004979 38.1 76.2 3.05 1.781 1250T Have
CHALCO_D006307 38.1 76.2 3.05 1.781 1250T Have
TF-07 38.1 76.2 1.00/1.20
CHALCO_D004515 44.45 76.2 3.05 1.885
TF-08 44.5 76.2 0.80/0.90/0.98/1.00/1.02/
1.10/1.18/1.20/1.22/
1.40/1.50/1.60/1.80/1.90
/2.00/2.25/2.50/3.00

ALD_D001142 50.8 76.2 3.18 2.072 1800
CHALCO_D000052 50.8 76.2 3.2 2.069 1250T
CHALCO_D002395 50.8 76.2 6.35 3.919 2000T
CHALCO_D004919 50.8 76.2 3.18 2.069 1250T Have
CHALCO_A000700 50.8 76.2 3.25 2.116 1250T
CHALCO_A001082 50.8 76.2 4.06 2.609 1800
CHALCO_A001342 50.8 76.2 4.76 2.931 1800 Have
CHALCO_D000242 76.2 76.2 3.18 2.504 2000T
CHALCO_D000243 76.2 76.2 4.78 3.683 2000T
CHALCO_D000244 76.2 76.2 6.35 4.788 2000T
CHALCO_D000969 76.2 76.2 6.1 4.614 2000T
CHALCO_D002749 76.2 76.2 6.35 4.65 2000T Have
CHALCO_D002823 76.2 76.2 6.35 4.603 2000T Have
CHALCO_D003108 76.2 76.2 4.78 3.684 2000T Have
CHALCO_D004660 76.2 76.2 2.08 1.737 1250T Have
CHALCO_D005242 76.2 76.2 2.29 1.898 1250T Have
CHALCO_D008546 76.2 76.2 2.36 1.884 1250T
CHALCO_D008679 76.2 76.2 4.76 3.593 2750T Have
CHALCO_D008680 76.2 76.2 6.35 4.659 2750T Have
CHALCO_DOO0242 76.2 76.2 3.18 2.502 2000T
CHALCO_DOO0243 76.2 76.2 4.78 3.683 2000T
CHALCO_DOO0244 76.2 76.2 6.35 4.788 2000T
CHALCO_DOO0969 76.2 76.2 6.1 4.614 2000T
CHALCO_A000701 76.2 76.2 3.25 2.561 1250T
CHALCO_A001347 76.2 76.2 1.5 1.174 1250T Have
CHALCO_D030030 76.2 76.2 2.29 1.825 1250T
CHALCO_D040196 38.1 76.2 1.5 0.902 880
BJZX-18 50.8 76.2 4.8 3.019 2000T R3.2
TF-84 20 77.2 1.20/
TF-43 25 78.5 1.10/1.20/
TF-46 25 79.4 0.90/0.95/1.00/1.15
/1.20/1.40

CHD_A000209 20 80 1.5 0.786 880T
TF-77 10 80 0.90/
CHALCO_A000376 20 80 2 1.037 1250T
CHALCO_AOOO376 20 80 2.0 1.037
CHD_A000209 20.00 80.00 1.50 0.786 660T
CHALCO_A000668 25 80 2 1.091 1250T
CHALCO_A000549 30 80 2 1.145 1250T
CHALCO_A000604 30 80 3 1.685 1250T
CHALCO_AOOO549 30 80 2.0 1.145
LXC-00-710 31 80 4 2.223 2000T Have
CHALCO_A000263 40 80 3 1.847 1250T
CHALCO_A000276 40 80 2 1.253 1250T
CHALCO_A000277 40 80 4 2.419 1250T
CHALCO_AOOO263 40 80 3.0 1.847
CHALCO_AOOO276 40 80 2.0 1.253
CHALCO_AOOO277 40 80 4.0 2.419
CHD_D000122 40 80 2.5 1.553 1250
TF-53 44 80 1.20/1.40
CHALCO_A000374 50 80 4 2.635 1250T
CHALCO_A000742 50 80 3 2.009 1250T
CHALCO_A001307 50 80 2 1.361 1250T
CHALCO_AOOO374 50 80 4.0 2.635 1250T
CHALCO_A000383 60 80 4 2.851 1250T
CHALCO_A000386 60 80 3 2.171 1250T
CHALCO_AOOO383 60 80 4.0 2.851 1250T
CHALCO_AOOO386 60 80 3.0 2.171
TF-89 60 80 1.90/


(Square And Rectangle)

Mould No. A(mm) B(mm) Wall Thickness
(mm)
Line Density
(Kg/m)
Extrusion
Capacity
R Angle
ADC1008976G030 70 80 6 4.471 3600T Have
DC00004373G00 80 80 4 3.283 2000T Have
CHALCO_A000268 80 80 2 1.685 1250T
CHALCO_A000354 80 80 3.00/ 2.495
CHALCO_A000356 80 80 5.00/ 4.05 1250T
CHALCO_A000359 80 80 4.00/ 3.283 1250T
CHALCO_A000485 80 80 6 4.795 2000T
CHALCO_A000882 80 80 8 6.221 2000T
CHALCO_A001102 80 80 2 1.685 1800
CHALCO_AOOO354 80 80 3 2.495 1800
CHALCO_AOOO356 80 80 5 4.05 1250T
CHALCO_AOOO359 80 80 4 3.283 1250T
ALD_D004060 50 80 3 1.988 1250T Have
LXC-00-303 50 80 4 2.633 2000T Have
TF-82 20 85 0.90/
TF-44 25 85 0.90/1.10/1.20
TF-117 85 85 1.20/
TF-54 25 86 1.00/1.20/1.50/2.92
TF-47 44 86 1.30/2.00
TF-128 86 86 1.90/
TF-101 25 88 0.90/0.98/1.13
CHALCO_D004692 38.1 88.9 1.4 0.936 1250T Have
CHALCO_D000399 88.90 88.90 3.18 2.924 2000T Have
CHALCO_D004587 88.9 88.9 6.1 5.45 3600T
CHALCO_DOO4587 88.9 88.9 6.1 5.45 3600T
TF-09 25.4 90 0.90/1.00/1.10/1.20/
1.30/1.40/1.80

TF-38 35 90 1.10/1.20
LNJH-09 40 90 2 1.462 1800T Have
TF-115 44 90 1.00/
TF-60 44.5 90 1.40/
CK-84 47 90 10 6.327 3150T
TF-79 50 90 1.20/1.38/1.40
CK-16 52 90 8 20.192 2000T
YGXC-008 70 90 3 2.495 1800T
8M9T-XC-SJS-001 90 90 5 4.59 3600T Have
CHALCO_A000602 90 90 4 3.715 1250T
TF-114 90 90 1.40/
TF-30 25 93 1.20/1.48
TF-116 93 93 1.20/
TF-34 25 95 1.00/1.20/1.25/1.30/1.40
TF-90 25 96 1.10/
ALD_D004010 50 100 3 2.312 1250T Have
CHALCO_A000805 18 100 2 1.231 1250T
CHALCO_A000375 20 100 2 1.253 1250T
CHALCO_AOOO375 20 100 2.0 1.253
ALD_D001138 25 100 2.5 1.62 1250T
D-AK7639 25 100 1.4 0.924 1250T
TF-10S 25 100 0.90/0.97/1.00/1.10/
1.20/1.40/1.50

CHALCO_A000538 30 100 3 2.009 1250T
CHALCO_A000540 30 100 2 1.361 1250T
CHALCO_AOOO538 30 100 3.0 2.009
CHALCO_AOOO540 30 100 2.0 1.361
CHD_A000014 35 100 2.5 1.755 2000T
CHALCO_A000106 40 100 4 2.851 1250T
CHALCO_A000546 40 100 3 2.171 1250T
CHALCO_A000664 40 100 2 1.469 1800
CHALCO_AOOO106 40 100 4.0 2.851 1250T
CHALCO_AOOO546 40 100 3.0 2.171
D-AK7640 44 100 1.4 1.067 1250T
TF-12S 44 100 1.20/1.40/1.50/1.55/1.60/
1.80/2.00/2.50/2.80/3.00

TF-31 44 100 1.20/
ALD_D000408 50 100 1.6 1.263 1800 Have
ALD_D001139 50 100 6 4.332 2000T Have
ALD_D002433 50 100 3 2.27 1800 Have
LXC-00-706 50 100 3 2.331 2000T Have
CHALCO_A000278 50 100 3 2.333 1250T
CHALCO_A000377 50 100 4 3.067 1800
CHALCO_A000816 50 100 5 3.78 1250T
CHALCO_AOOO278 50 100 3.0 2.333
CHALCO_AOOO377 50 100 4.0 3.067 1800T
D-AK1603 55 100 1.6 1.312 1800
CHALCO_A000385 60 100 4 3.283 1250T
CHALCO_A000387 60 100 3 2.495 1250T
CHALCO_A000669 60 100 2 1.685 1250T
CHALCO_AOOO385 60 100 4.0 3.283 1250T
CHALCO_AOOO387 60 100 3.0 2.495
TF-63 60 100 1.8 1.52 2000T
CHALCO_A000665 80 100 3 2.819 1250T
SDJN-32 100 100 1.5 1.596 2000T
CHALCO_A000449 100 100 5.0 5.13 2000T
CHALCO_A000548 100 100 3 3.143 2000T
CHALCO_A000642 100 100 2 2.117 2000T
CHALCO_A000827 100 100 10 9.72 3600
CHALCO_A001050 100 100 3.8 3.948 3150T
TF-20 100 100 1.40/1.50/2.00
TF-213 100 100 3 3.094 2000T Have
DC00001816G00 85 100 5 4.725 3600 Have
CHD_A000284 40 100 2.5 1.823 1250T
CHALCO_D030292 50 100 2 1.577 1250T
CHALCO_D001531 25.4 101.6 3.18 2.066
CHALCO_D004776 25.4 101.6 1.4 0.929 1250T Have
TF-10 25.4 101.6 1.00/1.10/1.20/1.25/1.30/
1.45/1.50/1.90/3.00

TF-133 25.4 101.6 2.00/
TF-12 44.5 101.6 1.20/1.40/1.50/
1.80/2.00/3.00

TF-135 44.5 101.6 3.00/
CHALCO_D000435 50.8 101.6 3.18 2.502 2000T
CHALCO_D000824 50.8 101.6 6.35 4.756 2000T
CHALCO_D001654 50.8 101.6 6.35 4.788 2000T
CHALCO_D005171 50.8 101.6 6.35 4.81 2000T Have
CHALCO_A000702 50.8 101.6 3.25 2.561 1250T
ALD_D000578 76.2 101.6 2.3 2.105 1800 Have
CHALCO_D004782 76.20 101.60 6.35 5.661 2000T
TF-80 80 101.6 1.50/
CHALCO_D000400 101.6 101.6 3.18 3.36 2000T Have
CHALCO_D000432 101.6 101.6 3.18 3.372 2000T
CHALCO_D000433 101.6 101.6 6.1 6.286 2000T
CHALCO_D000694 101.6 101.6 4.78 4.993 3150T Have
CHALCO_D000698 101.6 101.6 3.18 3.305 2000T Have
CHALCO_D001021 101.60 101.60 6.35 6.437 3600T Have
CHALCO_D001652 101.6 101.6 6.35 6.53 3600T
CHALCO_D001653 101.6 101.6 4.78 4.991 2000T
CHALCO_D003185 101.6 101.6 1.57 1.701 2000T
CHALCO_D006525 101.6 101.6 6.35 6.528 3150T Have
CHALCO_D008591 101.6 101.6 3.18 3.375 3150T
CHALCO_D008991 101.6 101.6 1.91 2.056 2000T
CHALCO_DOO0433 101.6 101.6 6.1 6.286 2000T
CHALCO_DOO1652 101.6 101.6 6.35 6.53 3600T
CHALCO_DOO1653 101.6 101.6 4.78 4.991 2000T
CHALCO_A001346 101.6 101.6 2 2.1 2000T Have
TF-81 101.6 101.6 1.50/
CHALCO_D040269 50.8 101.6 2 1.603 1800
JTJ-22 30 106 1.5 1.077 1800T
SMYK-16 35 110 2 1.539 2000T
TF-62 50 110 1.40/
CHALCO_A000594 60 110 4 3.499 1250T
SMYK-22 100 110 2 2.249 2000T
TF-212 110 110 3 3.376 2750T Have
CHALCO_D005717 44.45 114.3 3.18 2.614 1800
SFM17-041XC 108 115 4 4.582 3600T Have
DC00000851G00 70 115 5 4.725 3600T Have
JTV-045 38.5 118 2 1.653 2000T
TF-168 15 120 1 0.718
CHALCO_A000362 20 120 2.0 1.469
CHALCO_AOOO362 20 120 2 1.469 2000T
CHALCO_A000807 30 120 2 1.577 2000T
CHALCO_A001120 30.00 120.00 3.00 2.333 2000T
TF-61 30 120 1.38/1.40/2.50
CHALCO_A000378 40 120 4 3.283 2000T
CHALCO_A00892 40 120 2 1.685
CHALCO_AOOO378 40 120 4.0 3.283 2000T
CCNZ-18 49 120 3 2.641 2750T
CHALCO_A000379 50 120 4 3.499 2000T
CHALCO_AOOO379 50 120 4.0 3.499 2000T
TF-92 50 120 1.50/3.00
TF-92A 50 120 2 1.795 2000T Have
TF-32 53 120 3.00/
CHALCO_A000380 60 120 4 3.715 2000T
CHALCO_A000542 60 120 3 2.819 2000T
CHALCO_AOOO380 60 120 4.0 3.715 2000T
CHALCO_AOOO542 60 120 3.0 2.819 2000T
TF-70 60 120 1.50/
CCNZ-19 63.5 120 3 2.876 2750T
TF-171 65 120 2.6 2.524
YDKM-TF-01 70 120 2.5 2.498 2000T
TF-158 75 120 2 2.063
CHALCO_A000421 80 120 3.0 3.143 2000T
CHALCO_A000815 80 120 4 4.147 2000T
CHALCO_A001721 80 120 6 6.091 3600
CHALCO_A001759 80 120 6 6.036 3600
CHALCO_AOOO421 80 120 3.0 3.143 2000T
CHALCO_A000532 120 120 5 6.21 3600
CHALCO_A000663 120 120 2.5 3.173 3600
TF-120 120 120 2.15/
TF-205 120 120 7 8.54 3600T Have
CHD_A000285 120 120 4.0 5.011 3600T
ALD_D002720 50 125 2 1.847 2000T
D-AK7641 50 125 2 1.892 2000T
TF-131 50 126.5 3.00/
TF-132 126.5 126.5 3.00/
CHALCO_D000825 50.8 127 6.35 5.627 2000T
CHALCO_D004532 51.21 127 1.93 1.817
CHALCO_D000564 76.2 127 12.7 12.188 3600T
CHALCO_D003076 76.2 127 12.7 12.194 3600
CHALCO_D002669 127 127 3.18 4.246 3600
CHALCO_DOO2669 127 127 3.18 4.243 3600T
LYL-127 134 134 6 8.232 3600T
TF-91 50 135 1.50/
CHALCOGYC-1131D 50 135 4 3.823 2750T
KD1-5401331 60 135 4 4.039 2750T
CHALCO_A000381 18 140 2 1.663 1250T
CHALCO_AOOO381 18 140 2.0 1.663
CHALCO_A000605 40 140 4 3.715 2000T
TF-107 45 140 3 2.909 2750T Have
TF-166 60 140 2.5 2.633 2000T
CHALCO_A000547 80 140 4 4.579 3600
CHALCO_AOOO547 80 140 4.0 4.579 2000T
SZJSG-13 80 140 3.0 3.467 3150T
TF-106 25 150 2.00/
CHALCO_A000486 30 150 2 1.901 1250T
CHALCO_AOOO486 30 150 2.0 1.901
CHD_A000018 35 150 2.5 2.43 2750T
CHALCO_A000279 40 150 4.0 3.931 2000T
CHALCO_AOOO279 40 150 4.0 3.931 2000T
ALD_D000407 50 150 3 3.123 3150T Have
ALD_D000576 50 150 3 3.143 3150T
ALD_D001140 50 150 3 3.143 3150T
ALD_D003414 50 150 3 3.143 3150T
CHALCO_A000382 50 150 4.0 4.147 3150T
CHALCO_AOOO382 50 150 4.0 4.147 2000T
TF-22 50 150 2.00/3.00
TF-87 60 150 2.00/
TF-134 72 150 3.00/
LH-06 100 150 2.5 3.308 3600T
CHALCO_A000929 100 150 3 3.953 3600
LYL-126 150 150 6 9.269 3600 Have
CHALCOXC-123 150 150 2.5 3.982 3600
ZZBKM-020 150 150 3 4.763 3600
CHALCOGYC-1884 150 150 12.0 17.885 7500T
600*420
R0.5
HZCG-30 59.5 150.5 3 3.305 3150T
ALD_D002629 76 152 6 6.924 3150T Have
CHALCO_D000826 50.8 152.4 6.35 6.498 3600T
CHALCO_D001534 50.8 152.4 3.18 3.372 2000T
CHALCO_A000704 50.8 152.4 3.25 3.453 3600
ALD_D000577 76.2 152.4 6.4 7.384 3600 Have
CHALCO_D001535 76.2 152.4 4.78 5.647 3600T
CHALCO_D002267 101.6 152.4 6.35 8.271 3600T
CHALCO_D002915 101.6 152.4 12.7 15.671 3600T
CHALCO_D006109 101.6 152.4 6.35 8.276 3600
CHALCO_D002667 152.4 152.4 3.18 5.117 3600
CHALCO_D005777 152.4 152.4 12.7 19.161 3600
CHALCO_DOO2667 152.4 152.4 3.18 5.113 3600T
CHALCO_A000930 40 160 2 2.117 1800
CHALCO_A001210 60 160 4 4.579 3150T
CHALCO_A000367 80 160 4.0 5.011 3600T
CHALCO_AOOO367 80 160 4 5.011 3600
MBS-037 100 160 2.5 3.442 3600
TF-203 160 160 9 14.677 7500T
440*318

BJSX-55 30 180 4 4.363 3150T
CHALCO_A000757 40 180 4 4.579 3600T
CHALCO_A000757 40 180 4 4.579 3600
CHALCO_A000363 50 180 4.0 4.795 3600T
CHALCO_AOOO363 50.00 180.00 4.00 4.795 2000T,
3600T

RFT-GJ41 170.00 180.00 8.00 13.984 7500T
600*420
Have
CHALCO_A000670 18 200 2 2.311 2000T
JKGS02 30 200 2.5 3.038 2750T
ALD_D001184 50 200 3 3.953 3150T
ALD_D003415 50 200 3 3.953 3600
CHALCO_A000402 50 200 4.0 5.227 3600T
CHALCO_A000107 100 200 4 6.307 3600
CHALCO_AOOO107 100 200 4.0 6.307 3600T
TF-152 100 200 3 4.763 3600T
HFMT-39A 165 200 3.7 7.015 3600
440*260

SFE01-002XC 200 200 8 20.086 12500T OutsideR1.5
insideR15
CHALCOGYC-1885 200 200 15.0 29.969 7500T
600*420
R0.5
CHALCO_D000827 50.8 203.2 6.35 8.239 3600T
CHALCO_D001533 50.8 203.2 3.18 4.243 3600T
CHALCO_D002916 101.6 203.2 9.53 14.69 3600T
CHALCO_D002917 127 203.2 9.53 15.996 3600T
CHALCO_D002919 152.4 203.2 9.53 17.302 3600T
CHALCO_D002266 203.2 203.2 9.53 19.923 3600
CHALCO_DOO2266 203.2 203.2 9.53 19.915 3600T
CAA_D008944 228 228 40 48.888 7500T R5.0
TF-200 97 247 3 5.476 3600TΦ
585X318

ALD_D004011 50 250 3 4.763 3600T
CHALCO_A000712 50 250 4 6.307 3600
YDKM-SM-21 100 250 3.5 6.483 3600TΦ
585X318

ALD_D003626 150 250 12 24.068 5500T 600*360
ALD_D003625 250 250 12 30.548 7500T
600*420
OutsideR12.0
insideR4.0
CHALCO_A001405 249 253.5 15.5 52.931 7500T  insideR68.5
CAA_D008949 136 296 35 68.27 7500T R8.0
TF-155 50 300 2 3.784 3600T
TF-156 100 300 3 6.383 5500T
CHALCODX-126 160 300 15 34.832 12500T R1.0
TF-157 200 300 4.5 11.931 7500T
General Engineering
Contact Us
Mobile86 17344894490
Email:business@chalcoaluminum.com
