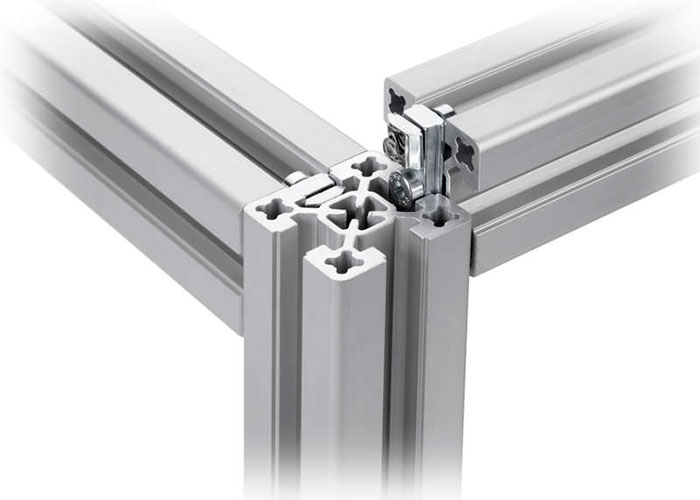

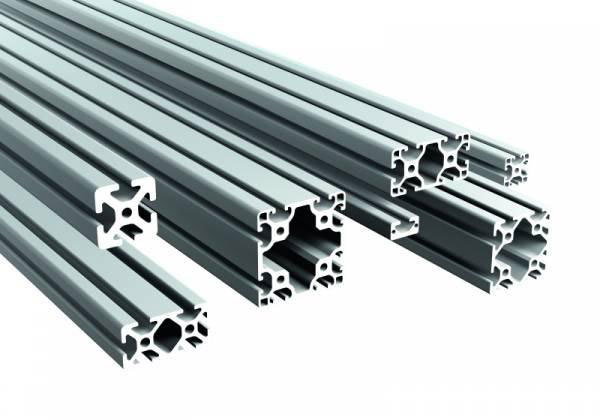

Chalco Aluminum 6005,6063A,6463,6R63 6060,6063 6061 Aluminum alloy profiles can be typically used for the frameworks of solar cells.
These aluminum alloys 6005,6063A,6463,6R63 6060,6063 6061 are belong to 6xxx SeriesMagnesium & Silicon alloy,are the most popular extrusion alloy class. With Good strength.good extrudability, good strength,good corrosion resistance,good machinability,good weldability.good formability.and heat treatable,etc characteristics.And can be easily anodised,therefore, the surface can be divided into Anodizing surface and Electrophoretic coating surface.
1) Alloy,Temper and The way of Surface treatment of Aluminium alloy profiles used for the frameworks of solar cells
|
Alloy |
Temper |
The way of Surface treatment |
|
6005,6063A,6463,6R63 |
T5,T6 |
Anodizing
Electrophoretic coating
|
|
6060,6063 |
T5,T6,T66 |
|
6061 |
T6 |
2)The chemical component of Aluminium alloy profiles used for the frameworks of solar cells
|
Alloy |
Chemical component(%) |
|
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
|
Ti |
Zr |
Other |
Al |
|
Each |
Total |
|
|
6005 |
0.6-0.9 |
≤0.35 |
≤0.10 |
≤0.10 |
0.40-0.6 |
≤0.10 |
≤0.10 |
- |
- |
≤0.10 |
≤0.05 |
≤0.15 |
Remain |
|
6063A |
0.30-0.6 |
0.15-0.35 |
≤0.10 |
≤0.15 |
0.60-0.9 |
≤0.05 |
≤0.15 |
|
≤0.10 |
－ |
≤0.05 |
≤0.15 |
Remain |
|
6463 |
0.20-0.6 |
≤0.15 |
≤0.20 |
≤0.05 |
0.45-0.9 |
- |
≤0.05 |
- |
- |
- |
≤0.05 |
≤0.15 |
Remain |
|
6R63 |
0.30-0.70 |
≤0.20 |
≤0.10 |
≤0.25 |
0.50-0.70 |
≤0.25 |
≤0.03 |
RE：0.10-0.25 |
≤0.10 |
- |
≤0.05 |
≤0.15 |
Remain |
|
6060 |
0.30-0.6 |
0.10-0.30 |
≤0.10 |
≤0.10 |
0.35-0.6 |
≤0.05 |
≤0.15 |
- |
≤0.10 |
- |
≤0.05 |
≤0.15 |
Remain |
|
6063 |
0.20-0.6 |
≤0.35 |
≤0.10 |
≤0.10 |
0.45-0.9 |
≤0.10 |
≤0.10 |
|
≤0.10 |
－ |
≤0.05 |
≤0.15 |
Remain |
|
6061 |
0.40-0.8 |
≤0.7 |
0.15-0.40 |
≤0.15 |
0.8-1.2 |
0.04-0.35 |
≤0.25 |
- |
≤0.15 |
－ |
≤0.05 |
≤0.15 |
Remain |

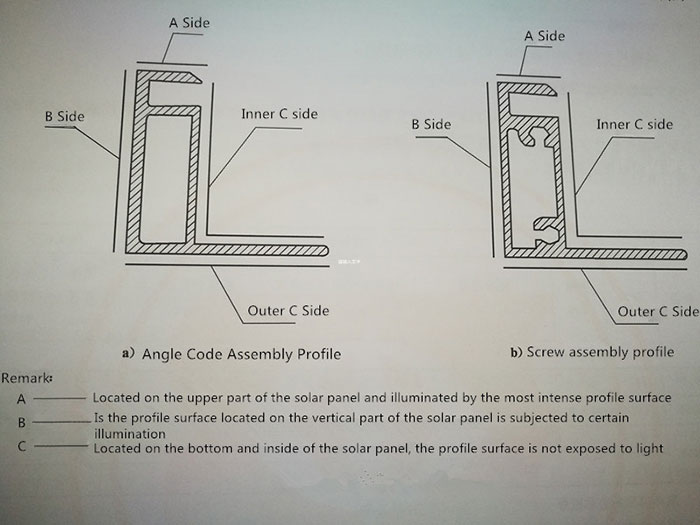

3）Longitudinal side camber degree of Aluminium alloy profiles used for the frameworks of solar cells
|
Accuracy grade |
A side Longitudinal side camber ,degree not more than |
|
ⅠGrade |
Within any 2 m length :1.0mm |
|
ⅡGrade |
Within any 2 m length :0.5 mm |
|
Accuracy grade |
B side Longitudinal side camber ,degree not more than |
|
ⅠGrade |
Within any 2 m length :1.0mm |
|
ⅡGrade |
Within any 2 m length :0.5 mm |
4) Mechanical Property at room temperature of Aluminium alloy profiles used for the frameworks of solar cells
|
Alloy |
Temper |
Wall thickness(mm) |
Mechanical Property Test |
Hardness test |
Tensile Strength
(MPa) |
Yield Strength
(MPa) |
Elongation
/a
(%) |
Sample thickness(mm) |
BH(Brinell Hardness)
HBW |
|
Not less than |
|
6060 |
T66 b |
≤3.0 |
215 |
160 |
8 |
1.2 |
12 |
|
6063 |
T66 b |
≤3.0 |
245 |
200 |
8 |
1.2 |
14 |
|
6R63 |
T5 |
≤3.0 |
170 |
120 |
8 |
1.2 |
11 |
|
T6 |
220 |
180 |
8 |
1.2 |
12 |
a,when the nominal thickness of sampled part is less than 1.2mm,not require elongation.
B,A heat treatment state with higher strength than the T6 state obtained by special process. |
5) Thermal cracking resistance of Aluminium alloy profiles used for the frameworks of solar cells
|
Grade |
Thermal cracking resistance temperature/℃ |
|
Ⅰ |
60 |
|
Ⅱ |
70 |
|
Ⅲ |
82 |
6）Alkali resistance of Aluminium alloy profiles used for the frameworks of solar cells
|
Grade |
Testing time/h |
Testing result |
|
Ⅱ |
24 |
≥9.5 Grade |
|
Ⅳ |
48 |
|
Ⅵ |
72 |
7）Salt fog resistance of Aluminium alloy profiles used for the frameworks of solar cells
|
Grade |
Testing time/h |
Surface corrosion test on non - underlined area film |
Underlayer filamentous corrosion test of underlined region |
|
Ⅲ |
48 |
≥9.5 Grade |
Not more than 2.0mm |
|
Ⅳ |
72 |
|
Ⅴ |
96 |
|
Ⅵ |
120 |
8)Accelerated weathering resistance of Aluminium alloy profiles used for the frameworks of solar cells
|
Weathering resistance Grade |
Testing time/h |
Testing result |
|
Pulverization degree |
Gloss retention
/% |
Degree of discoloration |
|
Ⅱ |
1000 |
0 grade |
≥80 |
≤ 1 grade |
|
Ⅲ |
2000 |
|
Ⅳ |
3000 |
|
Ⅴ |
4000 |
