Aluminium alloys extruded profiles used for motor

2018-05-21 15:12

Chalco Aluminum has different Aluminium and aluminium alloys extruded profiles used for motor.With different temper and different Surface treatment types:Anodizing;
Anodizing+Electrophoretic coating；powder spray coating；Liquid spray coating,etc.
They are typically used for common structural parts,Collision safety parts and Other uses,etc.

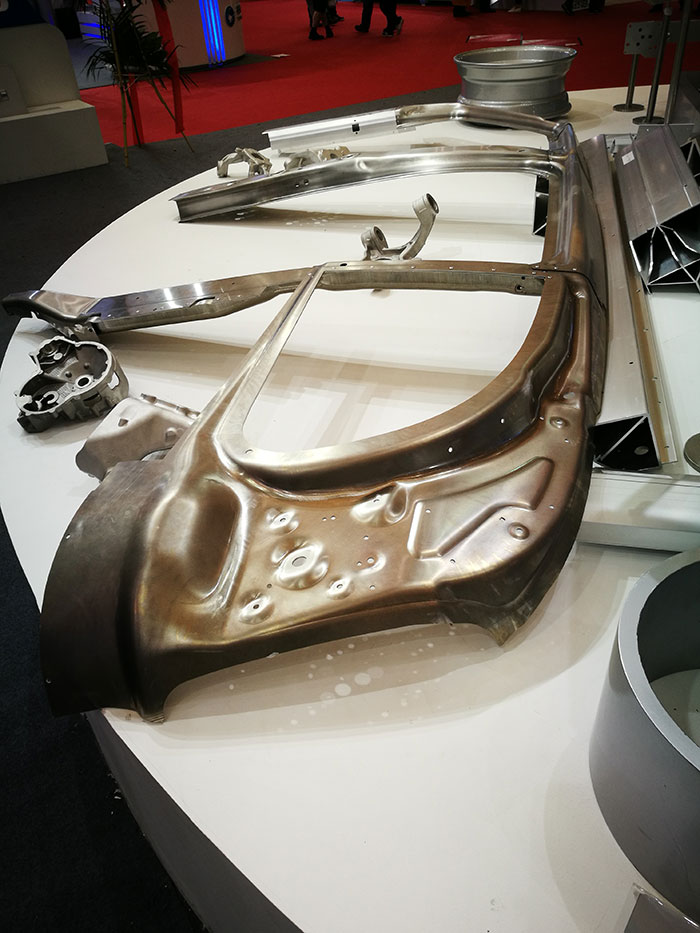

Common structural parts:Body frame, carriage plate, frame transverse / longitudinal beam, floor, engine bracket, control arm etc
Collision safety parts:Front and rear bump beam, car door collision avoidance beam, energy absorption box, etc.

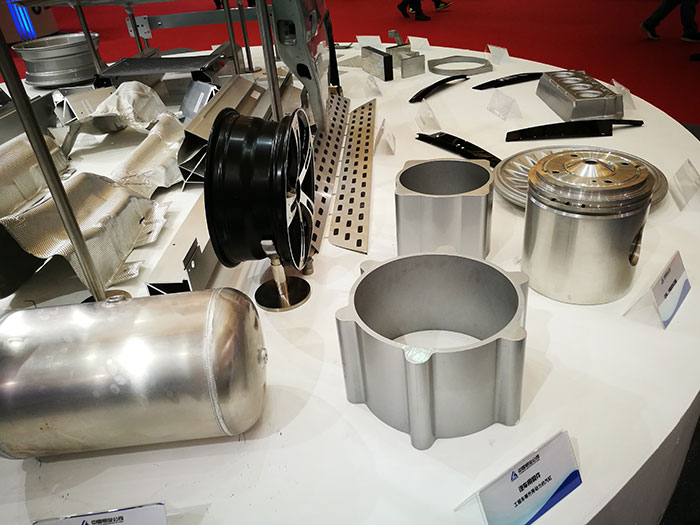

Other uses:Wind window frame, door and window frame, door interior plate, luggage rack, luggage ladder, rubbing strip, seat slide rail, seat frame, top window, sliding door guide, door accessories, ABS valve body, condensing pipe, heat exchanger parts, etc.
1)Alloy,temper and Surface treatment types of Aluminium and aluminium alloys extruded profiles used for motor

Alloy	Temper	Surface treatment types
1100	O,H112	Anodizing; Anodizing+Electrophoretic coating； powder spray coating； Liquid spray coating
1200	H112
2008,2010,2036	T6
2017,2117	T4,T6
2024	T6,T8,T8510,T8511
3002,3003,3005	H112
4B01,4B91	T6
5005	F,H112,H111,O
5252,5454,5457,5657	H112
6005,6005A,6061,6463	T4,T5,T6
6106,6009,6010,6011,6016, 6151,6053,6A61,6S02	T6
6060,6063	T4,T5,T6,T64,T66
6008,6014	T4,T6
6082	O,T4,T5,T6
6A01	T5,T6
7003,7005,7129,7A46	T5,T6
7021	T6
7B05	T4,T5,T6

2）Using features of Aluminium and aluminium alloys extruded profiles used for motor

Using features	Definition	Typical parts	Typical alloy
Used for common structural parts	It is used to form the main structure of vehicle, and ensure the overall strength, rigidity and vehicle’function	Body frame, carriage plate, frame transverse / longitudinal beam, floor, engine bracket, control arm etc	2008,2010,2036,6005,6005A, 6009,6010,6011,6016,6151, 6060,6061,6063,6463,6082, 6A01,6S02,6A61,7005,7021, 7129,7B05
Used for Collision safety parts	It is used for vehicle parts to avoid further damage to passenger and other components through energy absorption and deformation during vehicle collision.	Front and rear bump beam, car door collision avoidance beam, energy absorption box, etc.	6005,6005A, 6008,6106,6014,6060,6061, 6063,6082,6A01,7003,7A46
Other uses	The Other parts except for the above purposes., such as decorative parts, accessories, special functional parts, etc.,	Wind window frame, door and window frame, door interior plate, luggage rack, luggage ladder, rubbing strip, seat slide rail, seat frame, top window, sliding door guide, door accessories, ABS valve body, condensing pipe, heat exchanger parts, etc.	1100,1200,2017,2117,2024, 3002,3003,3005,4B01,4B91, 5005,5252,5454,5457,5657, 6005,6009,6010,6011,6016, 6151,6053,6061,6063,6463,6082,7003

3)The chemical component of Aluminium and aluminium alloys extruded profiles used for motor

Alloy

Chemical component(%)

Other

Each

Total

2008

0.50-0.8

≤0.40

0.7-
1.1

≤0.30

0.25-0.50

≤0.10

≤0.25

V:0.05

≤0.10

≤0.05

≤0.15

Remain

2010

≤0.50

0.7-
1.3

0.10-0.40

0.40-1.0

≤0.15

≤0.30

≤0.05

≤0.15

Remain

2036

≤0.50

2.2-
3.0

0.10-0.40

0.30-0.6

≤0.10

≤0.25

≤0.15

≤0.05

≤0.15

Remain

4B01

3.8-
5.4

≤0.40

≤0.25

0.25-0.50

≤0.20

≤0.07

≤0.15

≤0.05

≤0.15

Remain

4B91

2.0-
4.0

≤0.35

0.10-0.50

≤0.07

0.35-1.0

0.05-0.20

≤0.08

≤0.20

≤0.05

≤0.15

Remain

5252

≤0.08

≤0.10

2.2-
2.8

≤0.05

V:0.05

≤0.03

≤0.10

Remain

5457

≤0.08

≤0.10

≤0.20

0.15-0.45

0.8-
1.2

≤0.05

V:0.05

≤0.03

≤0.10

Remain

5657

≤0.08

≤0.10

≤0.03

0.6-
1.0

≤0.05

V:0.05
Ga:0.03

≤0.02

≤0.05

Remain

6008

0.5-0.9

≤0.35

≤0.30

0.40-0.7

≤0.30

≤0.20

V:
0.05-0.20

≤0.10

≤0.05

≤0.15

Remain

6011

0.6-
1.2

≤1.0

0.40-0.9

≤0.8

0.6-
1.2

≤0.30

≤0.20

≤0.05

≤0.15

Remain

6022

0.8-
1.5

0.05-0.20

0.01-0.11

0.02-0.10

0.45-0.7

≤0.10

≤0.25

≤0.15

≤0.05

≤0.15

Remain

6151

0.6-
1.2

≤1.0

≤0.35

≤0.20

0.45-0.8

0.15-0.35

≤0.25

≤0.15

≤0.05

≤0.15

Remain

6053

≤0.35

≤1.0

1.1-
1.4

0.15-0.35

≤1.0

≤0.05

≤0.15

Remain

6S02

0.90-1.15

≤0.30

0.32-0.50

0.15-0.40

0.50-0.7

0.10-0.30

≤0.08

≤0.05

≤0.15

Remain

6A61

0.55-0.75

≤0.50

0.25-0.45

≤0.10

0.75-1.40

≤0.30

≤0.10

≤0.07

≤0.05

≤0.15

Remain

7129

≤0.15

≤0.30

0.50-0.9

≤0.10

1.3-
2.0

≤0.10

4.2-
5.2

V:0.05
Ga:0.03

≤0.05

≤0.15

Remain

7A46

≤0.12

≤0.30

0.10-0.40

≤0.10

0.9-
1.7

≤0.06

6.0-
7.0

≤0.08

≤0.05

≤0.15

Remain

a:Si content is the 45%-65% of actual Mg content

4)Mechanical Property at room temperature of Aluminium and aluminium alloys extruded profiles used for motor

Alloy	Supply Temper	Sample Temper	Wall thickness/mm			Mechanical Property					BH(Brinell Hardness) HBW
						Tensile Strength (MPa)	Yield Strength (MPa)		Elongation (%)
									A	A50mm
1100	O	O	≤25.00			75-105	≥20		≥22	≥20	-
	H112	H112	≤25.00			≥75	≥20		≥22	≥20	-
1200	H112	H112	≤25.00			≥75	≥25		≥20	≥18	23
2008	T6	T6	≤12.50			Attached Actual Measurement					-
2010	T6	T6	≤25.00			Attached Actual Measurement					-
2017	T4	T4	≤12.50			≥345		≥215	-	≥12	-
			>12.50-100.00			≥345		≥195	≥12	-	-
	T6	T6	≤12.50			Attached Actual Measurement					-
2117	T4	T4	≤12.50			Attached Actual Measurement					-
	T6	T6	≤25.00			Attached Actual Measurement					-
2024	T8 T8510 T8511	T8 T8510 T8511	≤25.00			≥455		≥380	≥5	≥4	130
	T6	T6	≤12.50			Attached Actual Measurement					-
2036	T6	T6	≤25.00			Attached Actual Measurement					-
3002	H112	H112	≤25.00			Attached Actual Measurement					-
3003	H112	H112	≤25.00			≥95		≥35	≥25	≥20	30
3005	H112	H112	≤25.00			Attached Actual Measurement					-
4B01	T6	T6	≤25.00			≥270		≥220	-	≥8	-
4B91	T6	T6	≤25.00			265-365		245-345	-	≥10	-
5005	F	-	-			-		-	-	-	-
	H112	H112	≤25.00			≥100		≥40	≥18	≥16	30
	O H111	O	≤25.00			100-150		≥40	≥20	≥18	30
5252	H112	H112	≤25.00			Attached Actual Measurement					-
6005 6005A	T4	T4	≤25.00			≥180		≥90	≥15	≥13	50
	T5	T5	≤6.30			≥250		≥200	-	≥7	-
			>6.30-25.00			250		200	8	7	-
	T6	T6	Solid profile	≤5.00		≥270		≥225	-	≥6	90
				>5.00- 10.00		260		215	-	6	85
				>10.00- 25.00		250		200	8	6	85
			Hollow profile	≤5.00		≥255		≥215	-	≥6	85
				>5.00- 15.00		≥250		≥200	≥8	≥6	85
6106	T6	T6	≤10.00			≥250		≥200	≥8	≥6	75
6008	T4	T4	≤10.00			≥180		≥90	≥15	≥13	50
	T6	T6	Solid profile		≤5.00	≥270		≥225	≥8	≥6	90
					>5.00- 10.00	≥260		≥215	≥8	≥6	85
			Hollow profile		≤5.00	≥255		≥215	≥8	≥6	85
					>5.00- 10.00	≥250		≥200	≥8	≥6	85
6009	T6	T6	≤25.00			Attached Actual Measurement					-
6010	T6	T6	≤25.00			Attached Actual Measurement					-
6011	T6	T6	≤25.00			Attached Actual Measurement					-
6014	T4	T4	≤10.00			≥140		≥70	≥15	≥13	55
	T6	T6	≤5.00			≥250		≥200	≥10	≥8	80
			>5.00- 10.00			≥225		≥180	≥8	≥6	80
6016	T6	T6	≤25.00			Attached Actual Measurement					-
6151	T6	T6	≤25.00			Attached Actual Measurement					-
6053	T6	T6	≤25.00			Attached Actual Measurement					-
6060	T4	T4	≤25.00			≥120		≥60	≥16	≥14	50
	T5	T5	≤5.00			≥160		≥120	-	≥6	60
			>5.00- 25.00			≥140		≥100	≥8	≥6	60
	T6	T6	≤3.00			≥190		≥150	-	≥6	70
			>3.00- 25.00			≥170		≥140	≥8	≥6	70
	T64	T64	≤15.00			≥180		≥120	≥12	≥10	60
	T66	T66	≤3.00			≥215		≥160	-	≥6	75
			>3.00- 25.00			≥195		≥150	≥8	≥6	75
6061	T4	T4	≤25.00			≥180		≥110	≥15	≥13	65
	T5	T5	≤16.00			≥240		≥205	≥9	≥7	-
	T6	T6	≤5.00			≥260		≥240	-	≥7	95
			>5.00- 40.00			≥260		≥240	≥10	≥8	95
6063	T4	T4	≤25.00			≥130		≥65	≥14	≥12	50
	T5	T5	≤3.00			≥175		≥130	-	≥6	65
			>3.00- 25.00			≥160		≥110	≥7	≥5	65
	T6	T6	≤10.00			≥215		≥170	-	≥6	75
			>10.00- 25.00			≥195		≥160	≥8	≥6	75
	T64	T64	≤15.00			≥180		≥120	≥12	≥10	65
	T66	T66	≤10.00			≥245		≥200	-	≥6	80
			>10.00- 25.00			≥225		≥180	≥8	≥6	80
6463	T4	T4	≤25.00			≥125		≥75	≥14	≥12	46
	T5	T5	≤25.00			≥150		≥110	≥8	≥6	60
	T6	T6	≤25.00			≥195		≥160	≥10	≥8	74
6082	O	O	≤25.00			≤160		≤110	≥14	≥12	35
	T4	T4	≤25.00			≥205		≥110	≥14	≥12	70
	T5	T5	≤5.00			≥270		≥230	-	≥6	90
	T6	T6	≤5.00			≥290		≥250	-	≥6	95
			>5.00- 25.00			≥310		≥260	≥10	≥8	95
6A01	T5	T5	≤6.00			≥245		≥205	-	≥8	-
			>6.00- 12.00			≥225		≥175	-	≥8	-
	T6	T6	≤6.00			≥265		≥235	-	≥8	-
6A61	T6	T6	≤25.00			≥260		≥240	-	≥8	-
6S02	T6	T6	≤25.00			≥315		≥285	≥15	≥15	-
7003	T5	T5	≤25.00			≥310		≥260	≥10	≥8	-
	T6	T6	≤10.00			≥350		≥290	-	≥8	110
			>10.00- 25.00			≥340		≥280	≥10	≥8	110
7005	T5	T5	≤25.00			≥345		≥305	≥10	≥8	-
	T6	T6	≤40.00			≥350		≥290	≥10	≥8	110
7021	T6	T6	≤20.00			≥410		≥350	≥10	≥8	120
7129	T5,T6	T5,T6	≤12.50			≥380		≥340	-	≥8	-
7A46	T5	T5	≤25.00			≥410		≥390	-	≥10	-
	T6	T6	≤25.00			≥420		≥390	-	≥10	-
7B05	T4	T4	≤25.00			≥315		≥195	-	≥11	-
	T5	T5	≤25.00			≥325		≥245	-	≥10	-
	T6	T6	≤25.00			≥335		≥275	-	≥10	-
