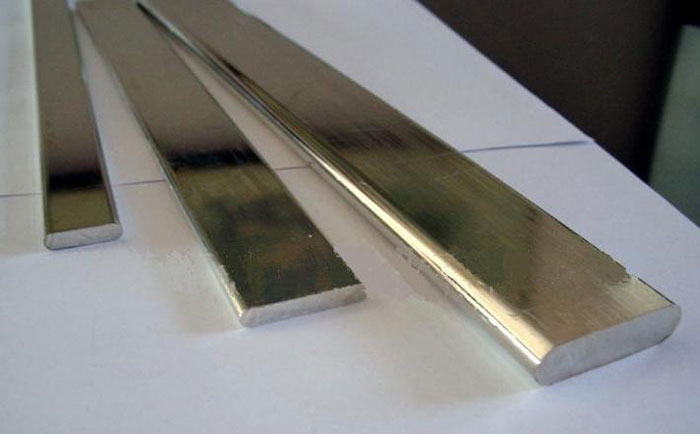

Aluminium Flat Bar

2021-09-16 16:58

We are one of the bes Aluminum Flat Bar Manufactures,exporters and suppliers , which are highly appreciated for their high durability. Available in several thickness, sizes and shapes, these flats are made from high quality metals and we source them from the authentic and reliable vendors of the competitive market. Our products are provided for automobile, construction as well as engineering industries and these are available within prompt time period to the clients.

Product Details :
Shapp : flat;
Temper : T3-T8;
Alloy : alloy;
Certification : ISO;
Polished Aluminum profile : Chemical polishing;
length : up to 5000mm;
Height or Diameter : up to 150mm;
Width or Diameter : up to 150mm;
Wall thickness : up to 10mm;
Form : Square,Flat;
Aluminum alloy : 1000 series to 8000 series;
Surface finish : Oxidation, Powder, Coating etc.
Packing way : Best suitable packing way;
Aluminum temper : T3-T6;
Usage : Construction and building;
Export markets : Global;

Aluminium Flat Bar
Mould No.	A(mm)	B(mm)	Line Density (Kg/m)	Extrusion Capacity	Alloy Temper	R Angle
SIGNI_D006722	6.35	6.35	0.109	500
SIGNI_D008447	6.35	6.35	0.109	500T		Have
TOB11-M007	6	7.3	0.118	500T
SIGNI_D006409	7.92	7.92	0.168	500		Have
SIGNI_D005761	7.95	7.95	0.171	500
SIGNI_A000977	8	8	0.173	500
SIGNI_A001305	5	8	0.108	500
SIGNI_D006410	8.05	8.05	0.174	500		Have
SIGNI_A000017	2	10	0.054	500
SIGNI_A000427	6	10	0.162	500
SIGNI_A000529	10	10	0.27	500
SIGNI_A000817	3	10	0.081	500
SIGNI_A001092	5	10	0.135	500
SIGNI-1473	8	10	0.216	500
SIGNI-1505	5	10	0.135	500
CHD_A000238	4	10	0.108	500T	6060-T66
CHD_A000238	4	10	0.108	500T	6060-T66
SIGNI_D006748	7.92	11.1	0.237	500		Have
SIGNI_D007232	7.925	11.1	0.237	500		Have
SIGNI_A000644	3	12	0.097	500
SIGNI_A000776	12	12	0.389	660T
SIGNI_A000917	6	12	0.194	500
SIGNI_D000419	3.175	12.7	0.107
SIGNI_D000650	6.35	12.7	0.218
SIGNI_D000937	12.7	12.7	0.435
SIGNI_D001621	4.763	12.7	0.164
SIGNI_D002664	9.53	12.7	0.327	660T
SIGNI_D005264	8.13	12.7	0.278	660T		Have
SIGNI_D006564	7.94	12.7	0.272	660T
SIGNI_D009292	1.59	12.7	0.054	500
SIGNI_A001031	7.62	12.7	0.261	500	6082-T6
TOB11-M006	8	14.3	0.309	660T
SIGNI_A000018	2	15	0.081	500
SIGNI_A000120	15	15	0.608	880T
SIGNI_A000149	5	15	0.202	500
SIGNI_A000156	8	15	0.324	500
SIGNI_A000157	10	15	0.405	660T
SIGNI_A000428	3	15	0.122	500
SIGNI_A000429	4	15	0.162	500
SIGNI_A000430	6	15	0.243	500
SIGNI_D005263	9.53	15.7	0.402	660T		Have
SIGNI_D000547	6.35	15.875	0.271
SIGNI_D001624	12.7	15.875	0.543
SIGNI_D004593	15.88	15.88	0.68	880T
SIGNI_D006563	3.18	15.88	0.136	660T
SIGNI_D005700	17.46	17.46	0.823
SIGNI_A000914	18	18	0.875	880T
SIGNI-474	1	18	0.049
SIGNI-33	3	19	0.154
SIGNI_D000029	3.175	19.05	0.164
SIGNI_D000196	4.763	19.05	0.245
SIGNI_D000938	19.05	19.05	0.978
SIGNI_D000980	9.525	19.05	0.489
SIGNI_D000983	6.35	19.05	0.325
SIGNI_D000985	12.7	19.05	0.653
SIGNI_D001258	7.9375	19.05	0.408
SIGNI_D001264	15.875	19.05	0.817
SIGNI_D009293	1.59	19.05	0.082	500
SIGNI-490	7.8	19.8	0.417	660T
ALD_D001144	1.6	20	0.086	500
SIGNI_A000019	2	20	0.108	500
SIGNI_A000038	5	20	0.27	500
SIGNI_A000059	8	20	0.432	660T
SIGNI_A000060	15	20	0.81	660T
SIGNI_A000121	20	20	1.08	1250T
SIGNI_A000144	4	20	0.216	500
SIGNI_A000151	6	20	0.324	500
SIGNI_A000299	3	20	0.162	500
SIGNI_A000313	10	20	0.54
SIGNI_A000411	12	20	0.648	880T
SIGNI_AOOO313	10	20	0.54	660T
SIGNI-274	5	20	0.27
SIGNI_D030280	3	20	0.161	500T	6060-T6	R0.5
TOB11-MX019	8.2	21	0.465	660T	6061-T5
SIGNI-525	6	22	0.356	660T
SIGNI_D002413	22.2	22.2	1.334	1250T
ALD_D001145	1.6	25	0.108	500
DL-SIF-005	22	25	1.485	1250T
SIGNI_A000020	2	25	0.135	500
SIGNI_A000122	25	25	1.688	1250T
SIGNI_A000264	10	25	0.675	880T
SIGNI_A000304	5	25	0.338
SIGNI_A000306	6	25	0.405
SIGNI_A000502	3	25	0.202	500
SIGNI_A000503	4	25	0.27	500
SIGNI_A000652	20	25	1.35	1250T
SIGNI_A000725	8	25	0.54	660T
SIGNI_A000726	12	25	0.81	880T
SIGNI_A000923	15	25	1.013	880T
SIGNI_AOOO304	5	25	0.338	660T
SIGNI_AOOO306	6	25	0.405	660T
SIGNI_D000030	3.175	25.4	0.218
SIGNI_D000034	6.3	25.4	0.436	660T
SIGNI_D000213	25.4	25.4	1.742	2000T	2024-T3511
SIGNI_D000422	9.525	25.4	0.653
SIGNI_D000659	15.875	25.4	1.088
SIGNI_D000946	12.7	25.4	0.871
SIGNI_D000962	4.775	25.4	0.328
SIGNI_D000964	19.05	25.4	1.306	1250T
SIGNI_D001632	22.225	25.4	1.524
SIGNI_D004729	7.94	25.4	0.544	660T
SIGNI_D006313	3.05	25.4	0.209	500
SIGNI_D008291	6.35	25.4	0.435	660T		Have
SIGNI_D009294	1.59	25.4	0.109	500
SIGNI_A000034	2	30	0.162	500
SIGNI_A000039	3	30	0.243	500
SIGNI_A000092	5	30	0.405	660T
SIGNI_A000093	10	30	0.81	880T
SIGNI_A000123	30	30	2.43	1250T
SIGNI_A000124	15	30	1.215	1250T
SIGNI_A000125	20	30	1.62	1250T
SIGNI_A000152	6	30	0.486	660T
SIGNI_A000466	25	30	2.025	1250T
SIGNI_A000497	8	30	0.648	660T
SIGNI_A000510	4	30	0.324	660T
SIGNI_A000724	12	30	0.972	880T
SIGNI-309	3	30	0.243
SIGNI-48	6	30	0.486
SIGNI-488	1.2	30	0.097
XSS-455	4	31.5	0.338	660T	6063-T5	R1.0
SIGNI_D000214	31.75	31.75	2.722	2000T
SIGNI_D000424	19.05	31.75	1.631
SIGNI_D000551	19.05	31.75	1.631
SIGNI_D000660	15.875	31.75	1.36
SIGNI_D000673	25.4	31.75	2.177
SIGNI_D001202	12.7	31.75	1.088
SIGNI_D001407	3.175	31.75	0.271
SIGNI_D002006	6.35	31.75	0.544	660T
SIGNI_D002146	9.53	31.75	0.817	880T
SIGNI_D003006	4.76	31.75	0.408	660T
SIGNI_D003029	25.4	31.75	2.175	1250T		Have
SIGNI_D009295	1.59	31.75	0.136	500
ALD_D000380	6	32	0.518	660T
ALD_D001132	10	32	0.864	880T
ALD_D001133	3	32	0.259	500
SIGNI-1079	18.8	32.6	1.652	1250T		Have
SIGNI-1371	9.7	34	0.89	880	6082-T6	Have
SIGNI-027	9	35	0.854		R
SIGNI_A000145	4	35	0.378	660T
SIGNI_A000265	20	35	1.89	1250T
SIGNI_A000307	6	35	0.567
SIGNI_A000426	35	35	3.308	1250T
SIGNI_A000431	15	35	1.418	1250T
SIGNI_A000498	5	35	0.473	660T
SIGNI_A000732	8	35	0.756	880T
SIGNI_A000888	10	35	0.945	880T
SIGNI_A000961	25	35	2.363	1250T	6082-T6
SIGNI_AOOO307	6	35	0.567	660T
KLYL-X204-4738	29	35	5.069	2750
SIGNI-1884	10	38	1.026	880	6005A-T6
SIGNI_D000032	4.8	38.1	0.491	880T
SIGNI_D000038	9.525	38.1	0.978
SIGNI_D000041	12.7	38.1	1.306	2000T	7075-T73511
SIGNI_D000215	38.1	38.1	3.919	3150T
SIGNI_D000420	3.175	38.1	0.325
SIGNI_D000425	19.05	38.1	1.96	1250T
SIGNI_D000426	25.4	38.1	2.613	2000T	7075-T6511
SIGNI_D000661	15.875	38.1	1.631
SIGNI_D000674	25.4	38.1	2.612	1250T
SIGNI_D000681	31.75	38.1	3.265	2000T
SIGNI_D000944	6.35	38.1	0.653
SIGNI_D001633	22.225	38.1	2.284
SIGNI_D009296	1.59	38.1	0.163	500
SIGNI-1078	24.3	39.6	2.596	2000T		Have
ALD_D003455	3.2	40	0.34	660T	6063-T6	Have
SIGNI_D009107	3	40	0.324	660T
SIGNI_A000040	5	40	0.54	660T
SIGNI_A000056	40	40	4.32	1250T
SIGNI_A000061	15	40	1.62	1250T
SIGNI_A000062	20	40	2.16	1250T
SIGNI_A000063	30	40	3.24	1250T
SIGNI_A000094	8	40	0.864	880T
SIGNI_A000095	10	40	1.08	880T
SIGNI_A000146	4	40	0.432	660T
SIGNI_A000301	3	40	0.324
SIGNI_A000308	6	40	0.648
SIGNI_A000432	12	40	1.296	1250T
SIGNI_A000678	2	40	0.216	500
SIGNI_A000734	25	40	2.7	1250T
SIGNI_AOOO301	3	40	0.324	660T
SIGNI_AOOO308	6	40	0.648	880T
SIGNI-308	4	40	0.432
SIGNI-681	3	40	0.324
SIGNI-744	27	40	2.916	2000T
SIGNI_D006296	6.35	41.275	0.708
SIGNI_D008072	25.4	41.28	2.825	2000T		Have
SIGNI_D004552	33.32	42.87	3.856	2000T		Have
SIGNI_A000859	1.2	43	0.139	500
SIGNI-1994	12.8	44	1.463	1250T	6A02-T6	R5
SIGNI_D000671	19.05	44.45	2.284
SIGNI_D000939	44.45	44.45	5.335	2000T
SIGNI_D000981	9.525	44.45	1.142
SIGNI_D001260	12.7	44.45	1.524
SIGNI_D001627	15.875	44.45	1.905
SIGNI_D002148	25.4	44.45	3.047	3150T
SIGNI_D002414	6.35	44.45	0.762	880T
SIGNI_D007019	4.76	44.45	0.572	660T
SIGNI_D007850	3.18	44.45	0.382	660T
SIGNI_A000874	38.1	44.45	4.573	2000T	6082-T6
SIGNI_A001030	31.75	44.45	3.81	1800	6082-T6
SMYK-18	3	45	0.368
SIGNI_A000126	20	45	2.43
SIGNI_A000305	5	45	0.607
SIGNI_A000810	45	45	5.468	3150T	6082-T6
SIGNI_A000818	8	45	0.972	880T
SIGNI_A000989	15	45	1.823	1250T
SIGNI_AOOO305	5	45	0.607	660T
SIGNI_A000037	50	50	6.75	3600T
SIGNI_A000041	10	50	1.35	1250T
SIGNI_A000055	50	50	6.75	3600T	6082-T6
SIGNI_A000064	20	50	2.7	1250T
SIGNI_A000065	30	50	4.05	3150T
SIGNI_A000066	40	50	5.4	3600T
SIGNI_A000096	15	50	2.025	1250T
SIGNI_A000147	4	50	0.54
SIGNI_A000148	25	50	3.375	3150T
SIGNI_A000155	8	50	1.08	1250T
SIGNI_A000162	12	50	1.62	1250T
SIGNI_A000266	5	50	0.675	880T
SIGNI_A000302	3	50	0.405
SIGNI_A000309	6	50	0.81
SIGNI_A000778	2	50	0.27	500
SIGNI_AOOO302	3	50	0.405	660T
SIGNI_AOOO309	6	50	0.81	880T
SIGNI-256	5	50	0.674
SIGNI-277	36	50	4.86	2000T
SIGNI-1992	10	50	1.292	1250T	6A02-T6	R5
SIGNI_D030316	2.9	50	0.392	660T	6082-T6
SIGNI-1077	24.3	50.6	3.318	2000T		Have
SIGNI_D000031	3.175	50.8	0.435
SIGNI_D000033	4.775	50.8	0.654
SIGNI_D000035	6.35	50.8	0.871	880T
SIGNI_D000039	9.525	50.8	1.307	2000T	7075-T6511
SIGNI_D000042	12.7	50.8	1.741
SIGNI_D000197	6.35	50.8	0.871
SIGNI_D000200	9.525	50.8	1.306
SIGNI_D000205	25.4	50.8	3.484	2000T
SIGNI_D000208	32.75	50.8	4.355	1250T
SIGNI_D000662	15.875	50.8	2.177
SIGNI_D000713	22.23	50.8	3.048	3150T
SIGNI_D000714	25.4	50.8	3.484	3150T
SIGNI_D000940	50.8	50.8	6.968	3150T
SIGNI_D000947	19.05	50.8	2.613	1250T
SIGNI_D001204	38.1	50.8	5.226	2000T	7075-T6511
SIGNI_D001637	44.45	50.8	6.094	2000T
SIGNI_D006131	7.94	50.8	1.089
SIGNI_D009095	3.17	50.8	0.435	660T
SIGNI-D006131	7.94	50.8	1.089	1250T
SIGNI_A000811	55	55	8.168	3600T	6082-T6
SIGNI_D004553	33.27	55.58	4.993	3600T
SIGNI_D000710	9.525	57.15	1.47
SIGNI_D000715	25.4	57.15	3.919	3150T
SIGNI_D000941	57.15	57.15	8.819	3600T
SIGNI_D001261	12.7	57.15	1.959
SIGNI_D001267	31.75	57.15	4.896	2000T
SIGNI_D002415	6.35	57.15	0.98	880T
SIGNI_A000875	19.05	57.15	2.94	1250T	6082-T6
SIGNI-1996	12.8	58	2.004	2000T	6A02-T6
SIGNI_A000067	5	60	0.81	880T
SIGNI_A000068	15	60	2.43	1250T
SIGNI_A000069	20	60	3.24	3150T
SIGNI_A000070	25	60	4.05	3150T
SIGNI_A000071	30	60	4.86	3600T
SIGNI_A000127	40	60	6.48	3600T
SIGNI_A000142	3	60	0.486
SIGNI_A000153	6	60	0.972	880T
SIGNI_A000158	10	60	1.62	1250T
SIGNI_A000311	8	60	1.296
SIGNI_A000404	60	60	9.72	3600T
SIGNI_A000511	12	60	1.944	1250T
SIGNI_A000614	4	60	0.648	880T
SIGNI_A000754	2	60	0.324	660T
SIGNI_A001088	60	60	9.72	3600T	6082-T6
SIGNI_A001895	35	60	5.67	2000T	6082-T6
SIGNI_AOOO311	8	60	1.296	1250T
SIGNI_AOOO404	60	60	9.72	3600T
SIGNI-297	6	60	0.972
SIGNI_D000043	12.7	63.5	2.177	1250T
SIGNI_D000201	9.525	63.5	1.631
SIGNI_D000209	38.1	63.5	6.532	3150T
SIGNI_D000210	50.8	63.5	8.71	3600T
SIGNI_D000216	63.5	63.5	10.887	3600T
SIGNI_D000421	4.775	63.5	0.818
SIGNI_D000428	25.4	63.5	4.353	3600T

Aluminium Flat Bar2
Mould No.	A(mm)	B(mm)	Line Density (Kg/m)	Extrusion Capacity	Alloy Temper	R Angle
SIGNI_A000143	3	100	0.81
SIGNI_A000150	5	100	1.35	1250T
SIGNI_A000312	8	100	2.16
SIGNI_A000433	12	100	3.24	1250T
SIGNI_A000434	40	100	10.8	3600T
SIGNI_A000468	25	100	6.75	3600T
SIGNI_A000514	6	100	1.62	1250T
SIGNI_A000647	4	100	1.08	1250T
SIGNI_A000791	30	100	8.1	3600T
SIGNI_A000971	75	100	20.25	3600T	6082-T6
SIGNI_A001046	82	100	22.14	3600T	6082-T6
SIGNI_A001109	100	100	27	7500T	6082-T6511
SIGNI_A001413	60	100	16.2	7500T	6082-T6511
SIGNI_A001414	80	100	21.6	7500T	6082-T6511
SIGNI_AOOO312	8	100	2.16	1250T
SIGNI-254	10	100	2.699	2000T
SIGNI-1993	10	100	2.642	2000T	6A02-T6	R5
SIGNI_D000045	12.7	101.6	3.484	3150T
SIGNI_D000046	19.1	101.6	5.226	3150T
SIGNI_D000198	6.35	101.6	1.742	3150T
SIGNI_D000199	3.175	101.6	0.871
SIGNI_D000649	4.763	101.6	1.306
SIGNI_D000665	15.88	101.6	4.355	3150T
SIGNI_D000684	31.75	101.6	8.706	3600T
SIGNI_D000686	38.1	101.6	10.447	3600T
SIGNI_D000966	25.4	101.6	6.965	3150T
SIGNI_D000967	50.8	101.6	13.935	7500T
SIGNI_D001259	8	101.6	2.177	1800
SIGNI_D001274	44.45	101.6	12.188	3600T
SIGNI_D001400	9.525	101.6	2.612	1800T
SIGNI_D002344	76.2	101.6	20.903	3600T
SIGNI_D002666	63.5	101.6	17.419	3600T
SIGNI_D007020	101.6	101.6	27.871	7500T
SIGNI_D007285	57.15	101.6	15.677	3600T
SIGNI-1998	12.8	102	3.467	3150T	6A02-T6	R5
LA-210	1.8	103	0.501	880	6061
SHSIGNI-120399	10.5	105	3.009	2000T
SIGNI-2000	12.8	105	3.629	3150T	6A02-T6
SIGNI_D001206	25.4	107.95	7.4	3600T
SIGNI_A001110	110	110	32.67	7500T	6082-T6511
SIGNI-2005	25	110	7.425	7500T 400*260	6A02-T6
SIGNI_D001265	15.875	114.3	4.896	2000T
SIGNI_D002147	9.525	114.3	2.938	3150T
SIGNI_D002417	31.75	114.3	9.798	3600T
SIGNI_D004730	25.4	114.3	7.839	3600T
SIGNI_D004731	63.5	114.3	19.597	3600T
SIGNI_D006294	19.05	114.3	5.879	2000T
SIGNI-01	3	116	0.939	1250T	6063-T1
SIGNI_D008261	3	117.49	0.952	1250T
SIGNI_A000137	10	120	3.24	3150T
SIGNI_A000138	15	120	4.86	3600T
SIGNI_A000140	30	120	9.72	3600T
SIGNI_A000161	8	120	2.592	1250T
SIGNI_A000315	20	120	6.48	3600T
SIGNI_A000435	25	120	8.1	3600T
SIGNI_A000513	5	120	1.62	1250T
SIGNI_A000679	30	120	9.72	3600T
SIGNI_A000733	12	120	3.888	1250T
SIGNI_A001403	120	120	38.88	7500T	6082-T6
SIGNI_A001408	3	120	0.972	1250T
SIGNI_A001415	40	120	12.96	7500T	6082-T6511
SIGNI_AOOO315	20	120	6.48	3600T
SIGNI-50	20	120	6.477	2000T
SIGNI-010	19	124	6.382	3150T	R
DC200-008	85	125	28.688	12500T	6082-T6
SIGNI_D002294	12.7	126.49	4.316	2000T
SIGNI_D000202	9.52	127	3.266	3150T
SIGNI_D000204	15.88	127	5.443	3150T
SIGNI_D000554	31.75	127	10.887	3600T
SIGNI_D000656	6.35	127	2.177
SIGNI_D000679	25.4	127	8.71	3600T
SIGNI_D000709	63.5	127	21.774	3600T
SIGNI_D000718	44.45	127	15.236	3600T
SIGNI_D000721	50.8	127	17.419	3600T
SIGNI_D001262	12.7	127	4.353	1800T
SIGNI_D001272	38	127	13.064	7500T
SIGNI_D001630	19.05	127	6.53	3600T
SIGNI_D006994	76.2	127	26.129	7500T
SIGNI_D007282	7.94	127	2.722	2000T
SIGNI_D007765	127	127	43.548	7500T
SIGNI_D010341	101.6	127	34.839	12500T	7075-T6511
SIGNI_D020018	15	127	5.144	3600T	6082-T6	Have
SIGNI_A000501	15	130	5.265	3600T
SIGNI_A000596	8	130	2.808	1250T
SIGNI_A000842	10	130	3.51	3150T
SIGNI_A001083	130	130	45.63	7500T	6082-T6
SIGNI-2001	12.8	130	4.435	3150T	6A02-T6	R5
SIGNI-062	3	135	1.094	1250T
SIGNI-1713	14	135	5.101	3600T	5A05-H112	R1.0
SIGNI_D001205	25.4	139.7	9.577	3600T
DC200-009	100	140	37.8	12500T	6082-T6
SIGNI_D008890	9	140	3.402	2000T
SIGNI_A000436	10	140	3.78	2000T
SIGNI_D020021	6	140	2.266	1800T	6082-T6	Have
SIGNI_D020054	12.7	145	4.972	3150T	6061-T6
W23.1.0-4-5	7	149	2.816	2000T
ALD_D000422	1.5	150	0.608	1250T
SIGNI_A000141	20	150	8.1	3600T
SIGNI_A000159	10	150	4.05	3150T
SIGNI_A000163	15	150	6.075	3600T
SIGNI_A000314	8	150	3.24	1800T
SIGNI_A000512	5	150	2.025	1250T
SIGNI_A000765	12	150	4.86	3150T
SIGNI_A001112	30	150	12.15	3600T
SIGNI_A001416	40	150	16.2	7500T	6082-T6511
SIGNI_AOOO314	8	150	3.24	1800
SIGNI-1353-17	25	150	10.125	3600T
SIGNI-1353-3	3	150	1.215	1250T
SIGNI-1353-3	3	150	1.215	1250T
SIGNI-1353-4	10	150	4.05	3150T
SIGNI-1353-4	10	150	4.05	3150T
SIGNI_D020020	6	150	2.428	1800T	6082-T6	Have
SIGNI_D020025	6.35	150	2.569	2000T	6082-T6	Have
SIGNI-2003	20	150	8.042	3600T	6A02-T6	R5
SIGNI_D000037	6.3	152.4	2.613	3150T
SIGNI_D000040	9.5	152.4	3.919	2000T
SIGNI_D000207	25.4	152.4	10.447	3600T
SIGNI_D000719	44.45	152.4	18.283	3600T
SIGNI_D000963	12.7	152.4	5.226	3600T
SIGNI_D001270	31.75	152.4	13.064	7500T
SIGNI_D001618	15.875	152.4	6.53	2000T
SIGNI_D002406	38.1	152.4	15.677	3600T
SIGNI_D002408	50.8	152.4	20.903	3600T
SIGNI_D005990	3.18	152.4	1.306	1250T
SIGNI_D006132	7.94	152.4	3.266	3150T
SIGNI_D006993	76.2	152.4	31.355	7500T
SIGNI_D007015	63.5	152.4	26.129	7500T
SIGNI_D009298	101.6	152.4	41.806	7500T	2024-T3511
SIGNI_D010342	152.4	152.4	62.71	12500T	7075-T6511
SIGNI-D001618	15.88	152.4	6.53	2000T
SIGNI_D020028	15	152.4	6.17	3600T	6082-T6	Have
SIGNI-620	25	155	10.463	2000T
KLYL-C7-4410	6	156.5	2.53	2000
ALD_D000526	25	160	10.8	3600T
ALD_D001129	6	160	2.592	2000T
ALD_D001134	4	160	1.728	2000T
SIGNI_A000942	20	160	8.64	3600T
SIGNI_A000957	10	160	4.32	2000T
SIGNI_A001054	8	160	3.456	3150T
SIGNI-1498	2	160	0.861	1800
SIGNI-1499	6	160	2.561	1800
SIGNI-769	15	160	6.48	3150T
SIGNI-2002	12.8	160	5.472	3600T	6A02-T6	R5
B753.1.0-3-2	7	161.29	3.048	2000T	6351-T6
SIGNI-1894	145	162	15.853	12500TΦ 378X150	5083-H112
TX3.1.0-4-5	7	164	3.1	2000T	6351-T6
B753.2.0-2	5	165.32	2.232	2000T	6351-T6
SIGNI-1839	152	172	17.647	7500T Φ 378X150	5083-H112	Have
SIGNI_D002416	12.7	177.8	6.097	3150T
SIGNI_D003007	38.1	177.8	18.29	3600T
SIGNI_D007013	50.8	177.8	24.387	7500T
SIGNI_A001154	25.4	177.8	12.194	3600T	6082-T6
MCD_D0000G13	16	180	7.774	2000T		Have
SIGNI_D008936	13	180	6.318	3150T
SIGNI_A000597	10	180	4.86	3600T
B753.2.0-3	5	189.54	2.559	2750T	6351-T6
SIGNI-805	10	189.8	5.125	3150T
SIGNI-955	10	189.8	5.124	3150T		Have
SIGNI_D008888	12.5	198	6.683	3600T
SIGNI_D008937	15	200	8.1	3150T
SIGNI_A000099	20	200	10.8	3600T
SIGNI_A000160	10	200	5.4	3600T
SIGNI_A000164	15	200	8.1	3600T
SIGNI_A000317	8	200	4.32	2000T
SIGNI_A000576	5	200	2.7	2000T
SIGNI_A000749	12	200	6.48	3600T
SIGNI_AOOO317	8	200	4.32	2000T
SIGNI_AOOO576	5	200	2.7	2000T
SIGNI-572	20	200	10.8	3600T
SIGNI-2009	40	200	21.542	7500T 440*260	6A02-T6	R5
SIGNI_D000203	9.525	203.2	5.224	3150T
SIGNI_D000669	12.7	203.2	6.965	3600T
SIGNI_D000680	25.4	203.2	13.93	3600T
SIGNI_D000716	31.75	203.2	17.412	3600T
SIGNI_D000979	6.35	203.2	3.482	3600T
SIGNI_D000984	9.525	203.2	5.224	3600T
SIGNI_D001631	19.05	203.2	10.447	3600T
SIGNI_D002940	38.1	203.2	20.903	3600T
SIGNI_D007005	44.45	203.2	24.387	7500T
SIGNI_D007016	76.2	203.2	41.806	7500T
SIGNI_D007085	15.875	203.2	8.71	3600T
SIGNI_D007284	50.8	203.2	27.871	7500T
SIGNI-2006	25	204	13.656	7500T 440*260	6A02-T6	R7
SIGNI-01	65	210	36.623	7500T 600*420	1060	R10
SIGNI_D020023	15	225	9.11	5500TΦ 590X425	6082-T6	Have
SIGNI-673	110	226	67.113	12500T
SIGNI_D005759	12.7	228.6	7.839	3600T
SIGNI_D020022	15	230	9.315	5500TΦ 590X425	6082-T6	Have
SIGNI-2007	25	230	15.525	7500T 440*260	6A02-T6
SIGNI_D008887	19.8	248	13.258	5000T
ALD_D000346	50.8	250	34.29	7500T
DC200-007	70	250	47.25	12500T	6082-T6
SIGNI_A000793	10	250	6.75	3600T
SIGNI_D020027	15	250	10.123	5500TΦ 590X425	6082-T6	Have
SIGNI-2004	20	250	13.442	7500T 400*260	6A02-T6	R5
SIGNI-2008	25	250	16.761	7500T 440*260	6A02-T6	R7
SIGNI_D000712	19.05	254	13.059	3600T
SIGNI_D000717	31.75	254	21.774	3600T
SIGNI_D001263	12.7	254	8.706	3600T
SIGNI_D001635	25.4	254	17.419	3600T
SIGNI_D005756	6.35	254	4.355	3600T
SIGNI_D005762	9.525	254	6.532	3600T
SIGNI_D007014	50.8	254	34.839	7500T
DC200-010	70	260	49.14	12500T	6082-T6
DC200-006	30	280	22.68	7500T	6082-T6
SIGNI-119	29.2	288	22.769	7500T	7075-T6511
SIGNI_A000316	10	300	8.1	3600T
SIGNI_AOOO316	10	300	8.1	3600T
SIGNI_D002939	25.4	304.8	20.903	3600T
SIGNI_D004002	9.53	304.8	7.839	3600T
SIGNI_D005591	19.05	304.8	15.677	3600T
SIGNI_D005757	6.35	304.8	5.226	3600T
SIGNI_D005760	12.7	304.8	10.452	3600T
SIGNI_D006820	38.1	304.8	31.355	7500T
SIGNI_D007283	31.75	304.8	26.129	7500T
SIGNI_D008496	50.8	304.8	41.806	7500T
SIGNI_D008886	25	330	22.275	7500T
DC200-011	65	350	61.425	12500T	6082-T6
SIGNI-118	28.4	370	28.369	7500T	7075-T6511
SIGNI_D010240	31.75	372.87	31.964	12500T	7075-T6511
DC200-012	60	400	64.8	12500T	6082-T6
SIGNI-316	35	400	37.8	7500T
SIGNI-02	40	460	49.448	9000T	1060	R10
SIGNI-03	45	460	55.658	12500T 780*420	1060	R10
SIGNI-04	60	460	74.288	12500T 780*420	1060	R10
SIGNI-121	10	475	12.42	7500T
SIGNI-1248	32	475	41.038	12500T 780*420	5083-H112	R1.0
SIGNI-76	30	555	44.946	7500T
SIGNI-128	10	570	15.39	9000T

General Engineering

Mobile86 17344894490
Email:business@chalcoaluminum.com
