Chalco Aluminium Industrial Profile Extrusion Capacity |
||
| Alloy | Temper | Fabrication |
|
1035,1050A,1050,1060, 1070, 1070A, 1100, 1200 |
O,F, H112,H24,H18,F,T4 | Anodizing, Electrolytic coloring,Liquid paiting, Precision,Cut-to-length,CNCMachine, Fabrication, Assembly, Prototypes,Design assistance. |
|
2014,2024,2017,2A01,2A04, 2A10,2A11,2A12,2A13,2A14,2A50,2A70,2A80,2A90, 2B11,2B12,2D12,2B04, 2B06,2B50,2D70 |
O,F, T1, T2, T3, T4, T5,T6, T66, T651, T6511,T3511， T351,T451,T4511 | |
|
3A21,3003 |
O,F, H112,H24,H18 | |
| 4A11 | ||
|
5050,5083,5052,5056,5A02,5A03,5A05,5A06, 5A12,5A13,5B05,5B06, 5183, 5456 |
H112, O, F, H34,H38 | |
|
6063,6060,6351,6061,6082,6463,6005,6005A,6105, 6106,6A02,6351,6262,6101, 6351, 6163 |
F, T1, T2, T3, T4, T5,T6, T66, T651, T6511,T3511 | |
|
7N01,7003,7A03,7A04, 7A09,7A10,7003,7075, 7A15 |
F, T1, T2, T3, T4, T5,T6, T66,T651,T6511,T3511,T73511, T76511 | |
|

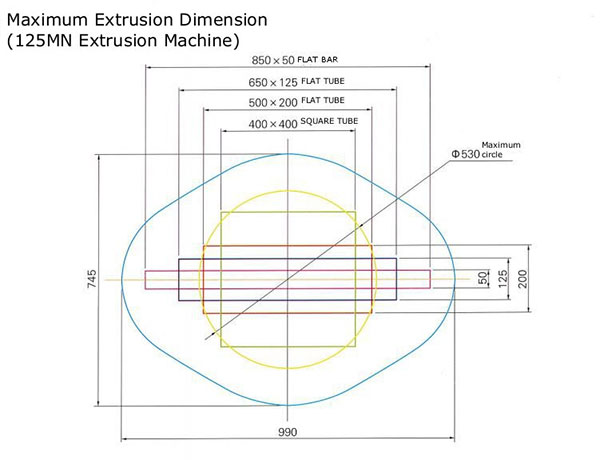

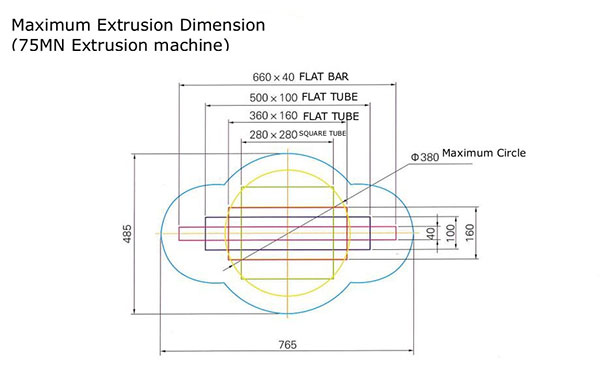

Chalco Aluminium Industrial Profile Size Capacity |
||
| Open Profile dimensions: | Min 4mm×3mm, Max.850mm×50mm. | |
| Closed profiles dimension: | Min. 6.35mm ×1mm, Max. 573mm×10mm. | |
| Weight per meter: | Min. 0.03kg/m, Max. 124kg/m | |
| Profile length: | Maximum 28m(standard 6000mm) | |
 |
||
 |
||
Surface Treatments
Chalco Aluminum provides unlimited choices in surface treatment of aluminum.
The aluminum intended for surface treatments in order, on the one hand to improve the anticorrosion behavior, and on the other to achieve the desired appearance.
